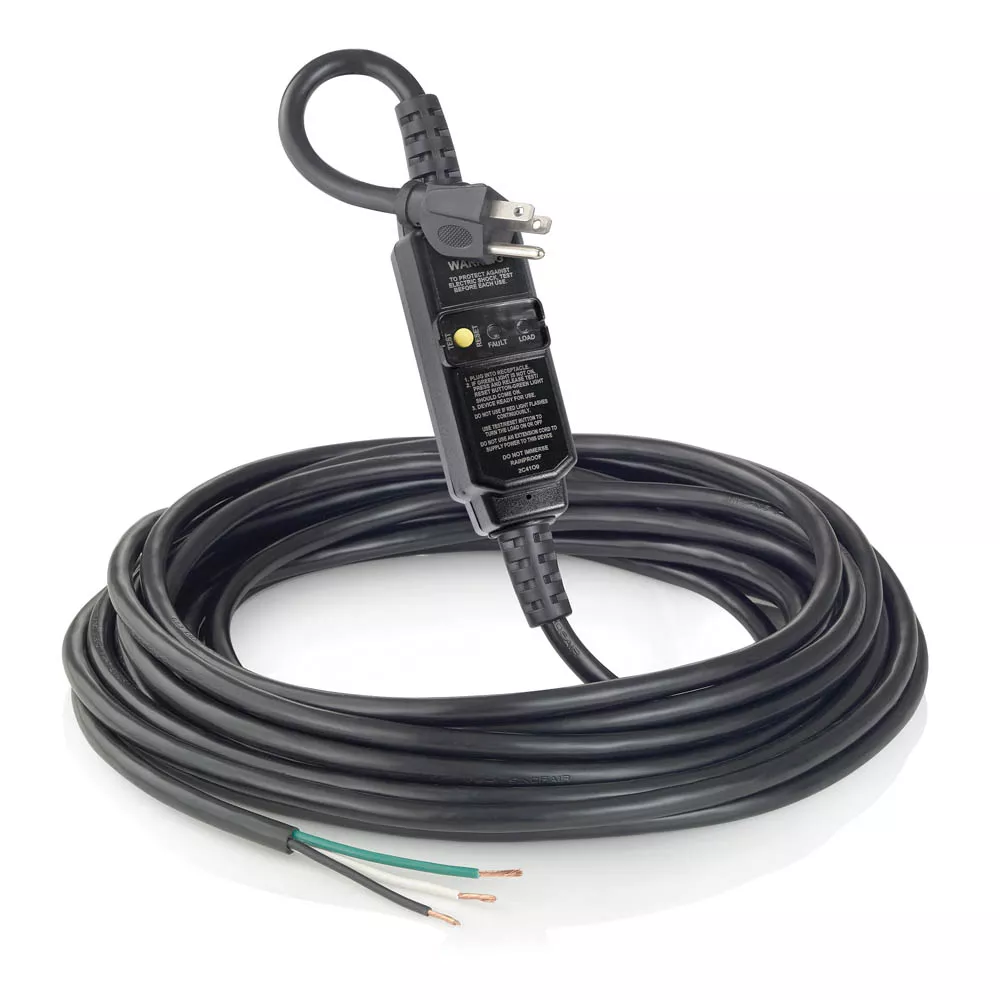

15 Amp GFCI Cord Set, 37 Foot, Automatic Reset
GSCA1-37E
15 Amp, 120 VAC, Self-Test Automatic Reset GFCI Cord Set, 37 Foot, 14-3 SJTW Cord, Molded on NEMA Plug (5-15P), End with 3.5” Leads Stripped 0.5”, Black
- Satisfies latest UL 943 self-test requirement
- Improve safety – protect critical personnel from electrical shocks
- Withstand outdoor conditions – rainproof and outdoor rated devices are OSHA compliant and feature weather-resistant SJTW cables
- Ideal for – vending machines, construction sites, RV parks, marinas, and spas/hot tubs
- Automatic reset – automatically restore power to connected equipment when plugged in or after power interruption, ideal for hard to access locations
Product Information
AC Horsepower Ratings
At Rated Voltage : 3/4 Horsepower
Electrical Specifications
Amperage : 15 A
Current Interrupting : 2 kA
Pole : 2
Trip Level : 5mA plus or minus 1mA
Voltage : 120 VAC
Wire : 3
Environmental Specifications
Flammability : Rated V-2 per UL94
Operating Temperature : -35°C to 66°C
Material Specifications
Blades/Contacts : Brass
Body Material : Polycarbonate
Cord Type : 14/3 SJTW
Mechanical Specifications
Product ID : Ratings marked on device label
Standards and Certifications
ANSI : C-73
CSA Standard : C22.2 No 144
NEMA : WD-6
NOM : 057
UL 498 : File E-48380
UL 943 : Class A (GFCI)
- MX344697
- MX265718
- US9276393
- US7436639
This list is provided for patent marking purposes only. A good faith effort is made to maintain the accuracy and completeness of this list. No legal inference should be drawn from the omission of a patent from this list.
