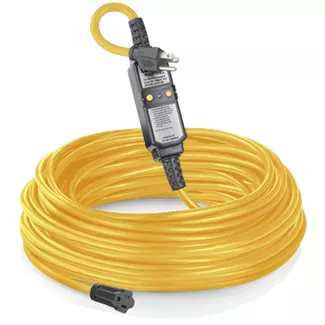

15 Amp GFCI Cord Set, 100 Foot, Automatic Reset

GFA15-100

DISCONTINUED

15 Amp, 120 Volt, 100 ft. Cord Set, Molded-On NEMA Plug (5-15P) and Connector (5-15R), Straight Blade, Automatic Reset GFCI Device, 14-3 SJTW Cord, UL/CSA Listed

Portable GFCI Devices from Leviton are now sleeker and more rugged than ever! And, while these devices are fully OSHA compliant for use on job sites, they are also perfect for use in a variety of temporary power applications, such as recreation vehicles, marine vehicles, portable pools, portable generators, submersible pumps, vending machines and more.

UPC Code: 078477420690
Country of Origin : China

Product Information

  • Material Specifications

    Blades/Contacts : Brass

    Body Material : Polycarbonate

    Cord Type : 14/3 SJTW

  • AC Horsepower Ratings

    At Rated Voltage : 3/4 Horsepower

  • Environmental Specifications

    Flammability : Rated V-2 per UL94

    Operating Temperature : -35°C to 66°C

  • Mechanical Specifications

    Product ID : Ratings marked on device label

  • Electrical Specifications

    Amperage : 15 A

    Current Interrupting : 2 kA

    Pole : 2

    Trip Level : 5mA plus or minus 1mA

    Voltage : 120 VAC

    Wire : 3

  • Standards and Certifications

    ANSI : C-73

    Applicable Standards : UL 943, UL 498, CSA C22.2 No. 42 & 144

    NEMA : WD-6

    NOM : 057

    Warranty : 2-Year Limited

  • Rainproof, Outdoor rated GFCI Module.
  • Fully complies with NEC and OSHA regulations for construction sites.
  • Automatically resets to ON when plugged in or after power interruption.
  • Power Indicator lamp goes OFF if GFCI trips, power is interrupted or line cord is unplugged.
  • Open-Neutral Protection immediately trips the GFCI if the neutral conductor on the line side is opened, eliminating the possibility of the GFCI Cord Set having a live hot leg.
  • Inline GFCI unit features a rainproof, ultrasonically welded enclosure to ensure long service life.
