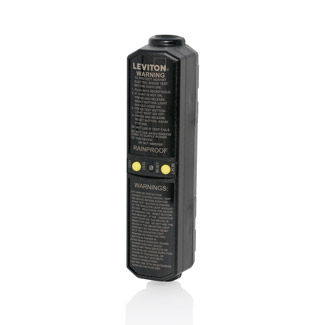

20 Amp In-Line User-Attachable GFCI Plug, Automatic Reset
GCA20
20-Amp, 120-Volt, Automatic Reset, In-Line User-Attachable GFCI Plug, Grounded
Product Information
AC Horsepower Ratings
At Rated Voltage : 3/4 Horsepower
Electrical Specifications
Current Interrupting : 2 kA
Trip Level : 5mA plus or minus 1mA
Environmental Specifications
Flammability : Rated V-2 per UL94
Operating Temperature : -35°C to 66°C
Material Specifications
Blades/Contacts : Brass
Body Material : Polycarbonate
Mechanical Specifications
Product ID : Ratings permanently marked on device
Product Features
Amperage : 20 A
Color : Black
Feature : Automatic Reset GFCI
Grounding : GFCI Ground Fault
NEMA : 5-15R
Pole : 2
UL 943 : Class A (GFCI)
Voltage : 120 VAC
Wire : 3
Standards and Certifications
ANSI : C-73
CSA Standard : C22.2 No 144
NEMA : WD-6
NOM : 057
- Rainproof, Outdoor rated GFCI Module.
- Fully complies with NEC and OSHA regulations for construction sites.
- Automatically resets to ON when plugged in or after power interruption.
- Power Indicator lamp goes OFF if GFCI trips, power is interrupted or the GFCI is unplugged.
- Open-Neutral Protection immediately trips the GFCI if the neutral conductor on the line side is opened, eliminating the possibility of the GFCI having a live hot leg.
- Specially designed NEMA 3R, Raintight-While-in-Use cover available.
- UL listed; complies with UL Standard 943 as a Class A GFCI power supply.
- CSA Certified.
- US7436639
This list is provided for patent marking purposes only. A good faith effort is made to maintain the accuracy and completeness of this list. No legal inference should be drawn from the omission of a patent from this list.
