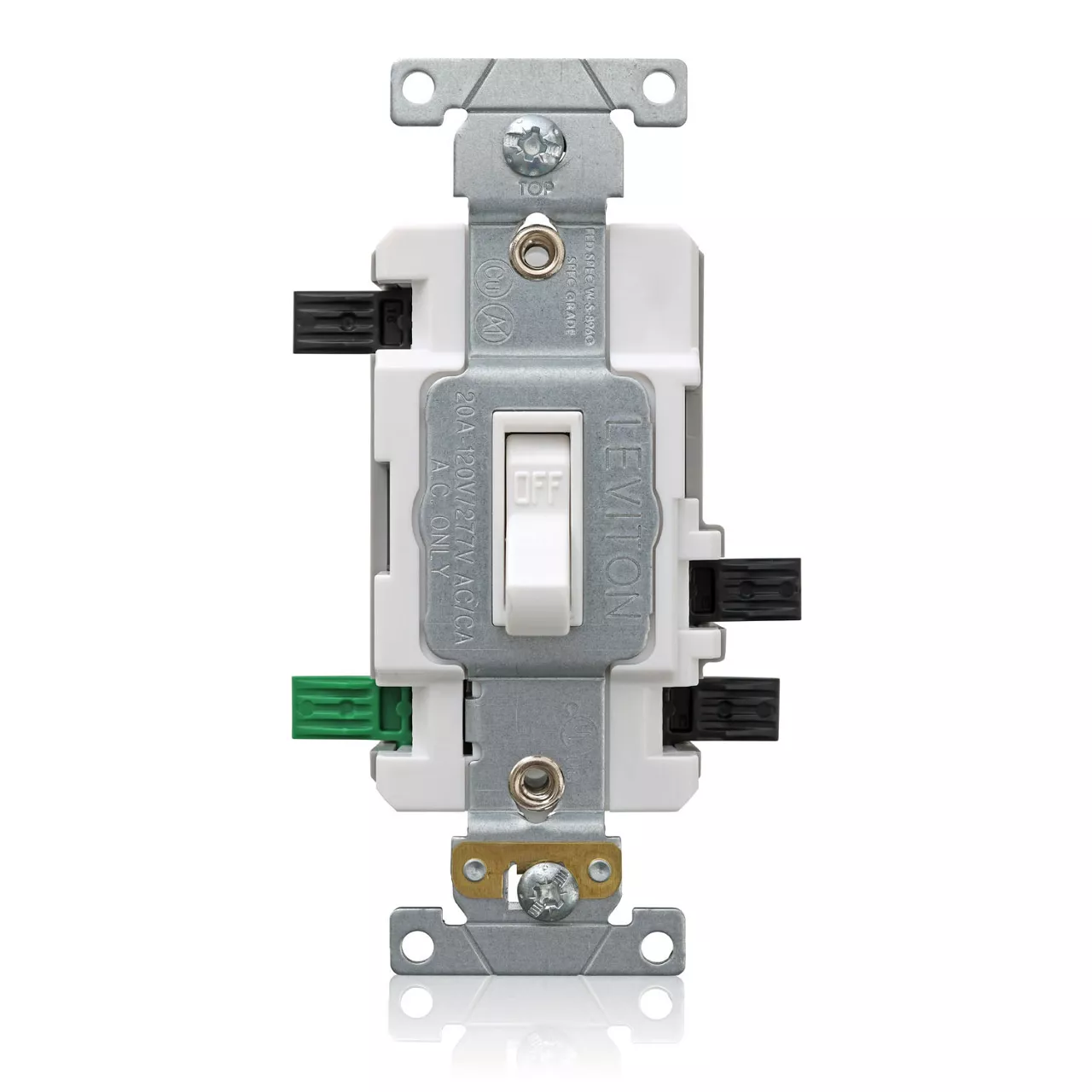

Lever Edge™ 20 Amp Single Pole Toggle Switch, Commercial Grade

ECSB1-W

Lever Edge™ 20 Amp 120/277 Volt Toggle Switch, Single Pole, Commercial Grade

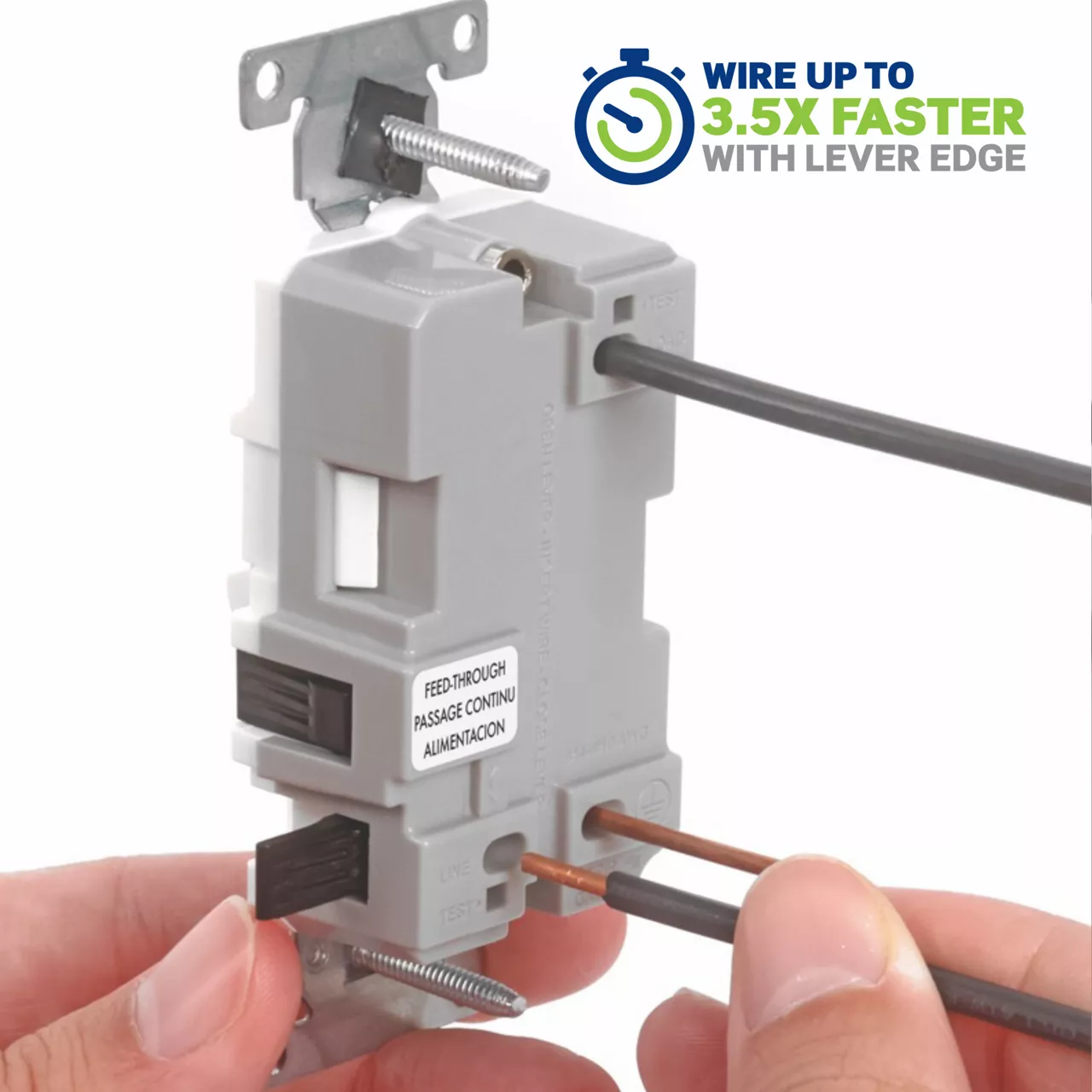

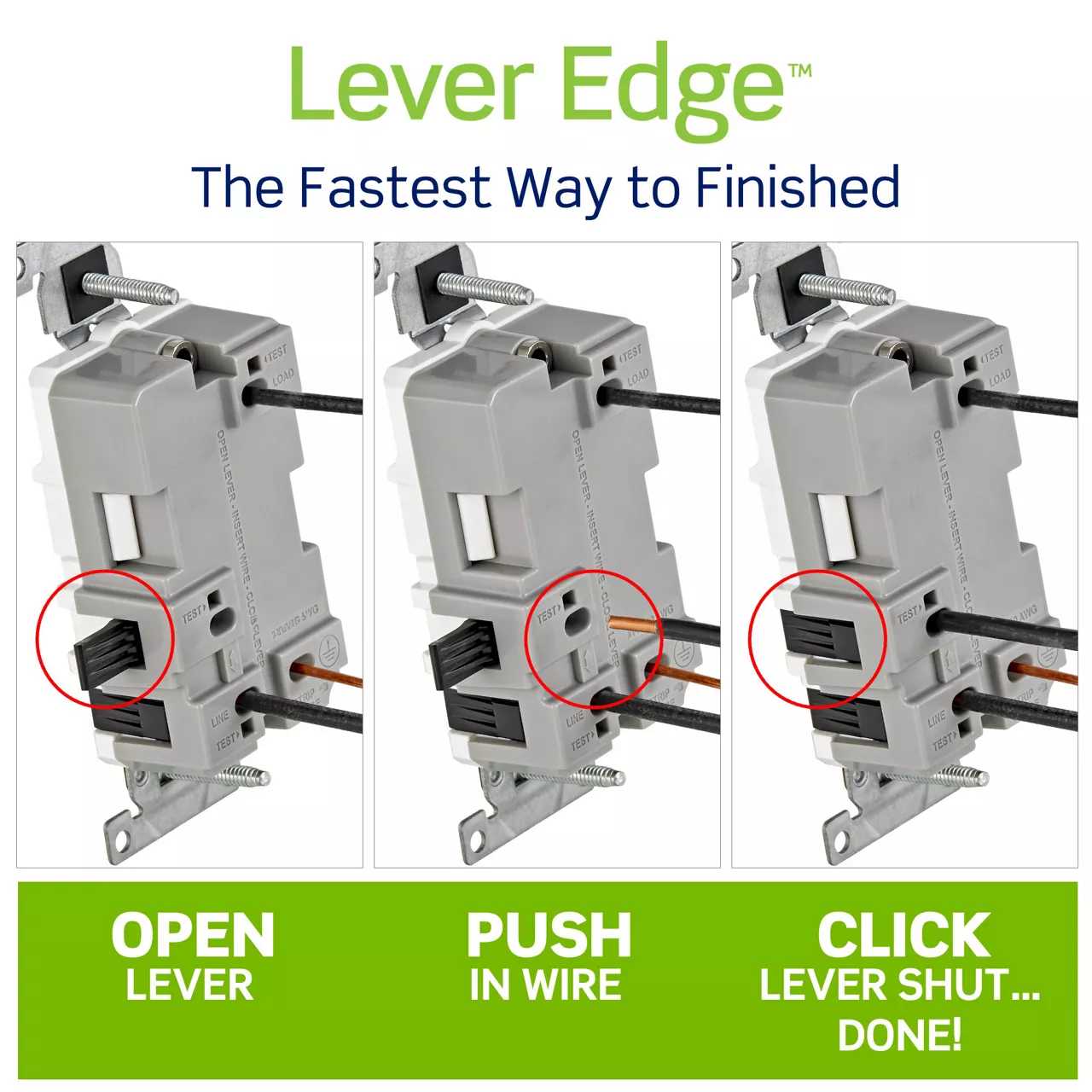

What happens when you combine Leviton’s industry-leading line of electrical wiring devices with the future of wiring? Meet Lever Edge™ wiring devices, designed for simple installations, time savings, superior performance, and long-lasting reliability. Simply open the lever, push the wire into the color-coded terminals, click down, and you’re done.

  • Fast, safe, easy to install: PUSH. CLICK. DONE.
  • Secure: lever mechanism provides a strong, secure wire connection
  • User-friendly design: color-coded lever terminals help prevent miswiring
  • Durable: exceptional performance against heat and vibration
  • Convenient: devices can be unwired/removed and rewired if needed

Color: White

UPC Code: 078477018774
Country of Origin : Mexico

Product Information

  • Electrical Specifications

    Horsepower Rating : 1 hp @ 120 V, 2 hp @ 240 V

    Max Amperage : 16 A

    Amperage : 20 A

    Endurance : 50,000 cycles minimum

    Overload (UL20) : 100 cycles of overload at 4.8 times rated current

    Voltage : 120/277 VAC

    Grounding : Self Grounding Clip

    Function : Single-Pole (SP)

    Dielectric Voltage : 1500 V

    Temperature Rise : Max 30°C at full rated current

  • Environmental Specifications

    Flammability Rating : V-2 per UL94

    Operating Temperature : Maximum continuous 65°C, minimum -40°C (w/o impact)

    Storage Temperature : -40°C to 65°C

  • Material Specifications

    Base : Polycarbonate

    Cover : Polycarbonate

    Toggle : Polycarbonate

    Ground Clip : Brass

    Contacts : Silver Alloy

    Mounting Strap : Galvanized Steel

  • Mechanical Specifications

    Product ID : Ratings are marked on device

    Wire Accomodation : #14-#10

    Termination : Side Lever

  • Product Features

    Grade : Commercial Specification Grade

    Brand : Lever Edge

    Feature : Framed Toggle

    Device Type : Toggle Switch

    Color : White

  • Standards and Certifications

    NEMA : WD-1 and WD-6

    Applicable Standards & Certifications : UL 20,Fed Spec WS-896,CSA C22.2, No. 111

  • Warranty

    Warranty : 2-Year Limited

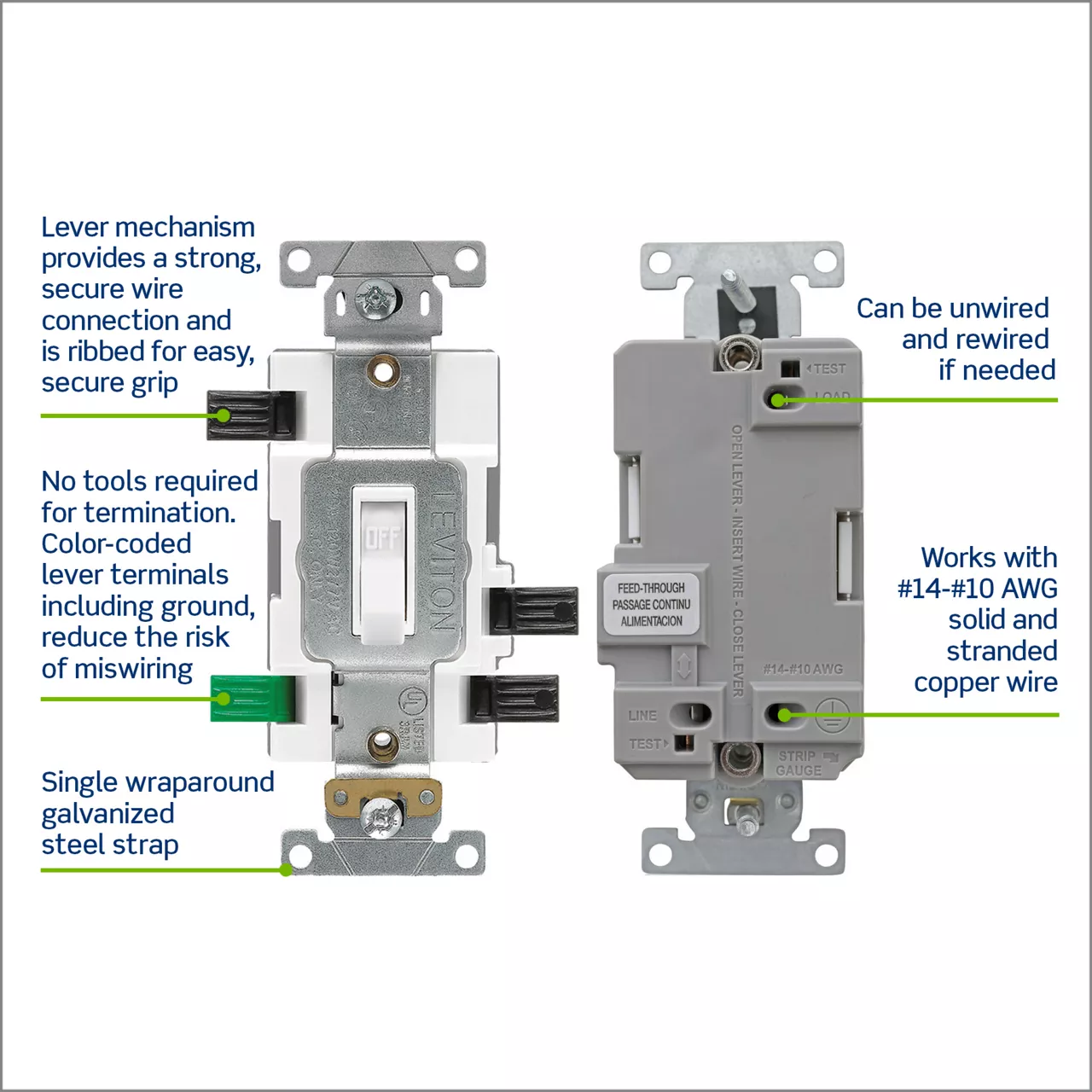

  • Unique lever terminals for fast, efficient wiring
  • Color-coded lever terminals reduces risk of miswiring
  • Lever doors have snap feature to assure connection has been made; audible click confirms lever door is closed
  • Exceptional performance against heat and vibration
  • Devices can be unwired/removed and rewired if needed

  • US11791573

This list is provided for patent marking purposes only. A good faith effort is made to maintain the accuracy and completeness of this list. No legal inference should be drawn from the omission of a patent from this list.
