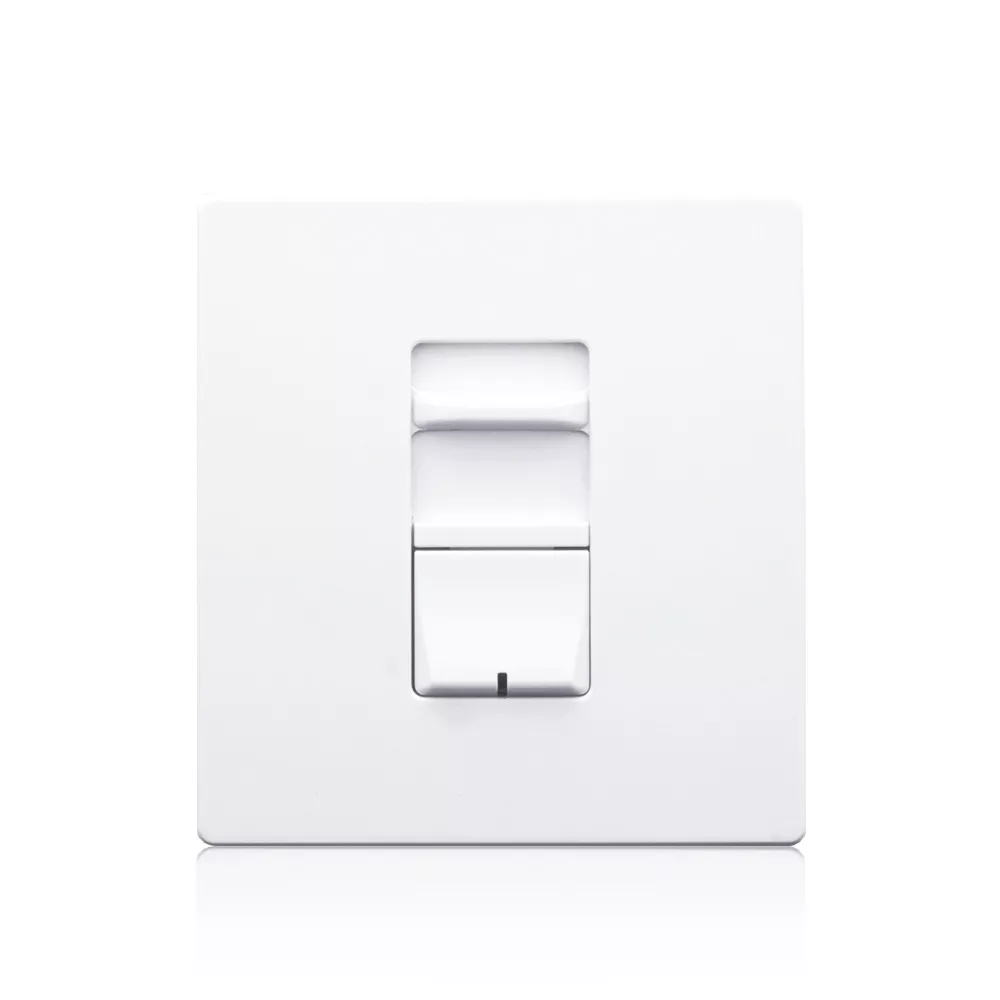

LED Ready Dimmer Switch, Light Switch, Slide Dimmer Switch, Incandescent & Magnetic Low-Voltage, 1500 W/VA, Renoir 2

AWSMT-ICW

Product Line: Renoir II, Load Type: Incandescent and Magnetic Low-Voltage, Wattage/VA: 1500, Voltage: 120, Control: Preset Slide, Heat Sink: Thin, Neutral: Not Required, Title 24 compliant

The Leviton Renoir™ II line of architectural wall box dimmers supports an unparalleled number of applications using a minimum number of SKUs.

Where to Buy

Add to Project List

Product Support

UPC Code: 078477459812

Country of Origin : Mexico

Product Information

Updated

Product Specification and Data Sheet - Dimming for LED Fixtures

View

Updated

Electrical Specifications
Voltage : 120 VAC
Wattage/VA : 1500
Product Features
Color : White
Control Style : Preset Slide
LED Compatible : Yes
Load Type : Incandescent and Magnetic Low-Voltage
Neutral : Not Required
Product Category : Wallbox
Product Line : Renoir II
Product Type : Preset Slide Dimmer

Universal voltage—120-277V (excludes non-neutral models)
- Multi-location dimming—up to 5-way dimming
- Remote dimmers and switches
- Connect up to 5 devices, max 250’ on one traveler wire
- Remote control all connected master dimmers
- Masters always operate independently
Locator indicator—illuminates when dimmer is off for easy location in a dark room
Non-neutral models—for retrofit applications
Configurable cut-off level—allows user configuration of cut-off point and automatically recalibrates to allow maximum control from cutoff point to full output
Smooth-action, linear captive slide control— easy, precise adjustment of lighting levels - Easy-touch preset switch turns lights ON at last selected brightness level
Clean and stylish appearance
- Fits standard commercial 2-1/2” deep wallboxes
- Decora® wallplates coordinate with Leviton’s extensive line of Decora devices
- Fins are easily removed for multi-gang applications
- No visible metal heat sinks, fins or mounting hardware
Solid state triac dimming—saves energy when dimming, extends lamp life and reduces maintenance costs
Flicker-free, smooth, and continuous dimming—reduces light fluctuations from line voltage variation and maintains the power delivered to the lamp
Power failure memory—light is restored to the same levels set prior to the power failure or power interruption
Surge protection—tested to withstand surges of 6,000V, 200A (ANSI/IEEE Std. C62.41-1980)
Electrostatic discharge protection—protects dimmer against static discharge up to 16,000V
Advanced technology engineered heat sinks—transfers heat away from essential electrical components for extended product life
Square law dimming—slider position indicates the perceived light level
RFI filtering—reduces interference with radio, audio and video equipment
Accessible air gap feature—completely disconnects power from the load when lights are off for safety when changing lamps (available on select models; consult factory for additional details)

MX306445

This list is provided for patent marking purposes only. A good faith effort is made to maintain the accuracy and completeness of this list. No legal inference should be drawn from the omission of a patent from this list.
