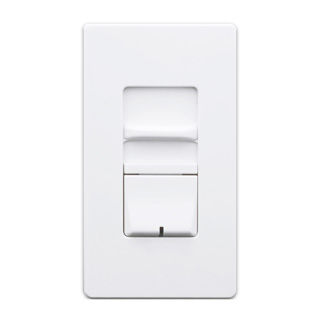

Dimmer Switch, Light Switch, Preset Slide, Incandescent and Magnetic Low-Voltage, 1000W, Renoir 2

AWSMG-IBW

DISCONTINUED

Product Line: Renoir II, Load Type: Incandescent and Magnetic Low-Voltage, Wattage/VA: 1000, Voltage: 120, Control: Preset Slide, Heat Sink: Standard, Neutral: Not Required, Title 24 compliant

The Leviton Renoir™ II line of architectural wall box dimmers supports an unparalleled number of applications using a minimum number of SKUs. Renoir II high performance dimmers support all load types and configurations. Performance, aesthetics, multi-location dimming, color selection, and multi-gang capabilities make Renoir II a highly functional, yet elegant solution for architectural dimming control.

Do you have a question about dimmers, a dimmer, or a dimmer switch? Contact us to learn more.

Visit residential dimmers to browse ideas for your home!
UPC Code: 078477460627
Country of Origin : China
RoHS Compliant: Yes – Click Here

Product Information

  • Universal voltage—120-277V (excludes non-neutral models)
    • Multi-location dimming—up to 5-way dimming
    • Remote dimmers and switches
    • Connect up to 5 devices, max 250’ on one traveler wire
    • Remote control all connected master dimmers
    • Masters always operate independently
  • Locator indicator—illuminates when dimmer is off for easy location in a dark room
  • Non-neutral models—for retrofit applications
  • Configurable cut-off level—allows user configuration of cut-off point and automatically recalibrates to allow maximum control from cutoff point to full output
  • Smooth-action, linear captive slide control— easy, precise adjustment of lighting levels - Easy-touch preset switch turns lights ON at last selected brightness level
  • Clean and stylish appearance
    • Fits standard commercial 2-1/2” deep wallboxes
    • Decora® wallplates coordinate with Leviton’s extensive line of Decora devices
    • Fins are easily removed for multi-gang applications
    • No visible metal heat sinks, fins or mounting hardware
  • Solid state triac dimming—saves energy when dimming, extends lamp life and reduces maintenance costs
  • Flicker-free, smooth, and continuous dimming—reduces light fluctuations from line voltage variation and maintains the power delivered to the lamp
  • Power failure memory—light is restored to the same levels set prior to the power failure or power interruption
  • Surge protection—tested to withstand surges of 6,000V, 200A (ANSI/IEEE Std. C62.41-1980)
  • Electrostatic discharge protection—protects dimmer against static discharge up to 16,000V
  • Advanced technology engineered heat sinks—transfers heat away from essential electrical components for extended product life
  • Square law dimming—slider position indicates the perceived light level
  • RFI filtering—reduces interference with radio, audio and video equipment
  • Accessible air gap feature—completely disconnects power from the load when lights are off for safety when changing lamps (available on select models; consult factory for additional details)

  • MX306445

This list is provided for patent marking purposes only. A good faith effort is made to maintain the accuracy and completeness of this list. No legal inference should be drawn from the omission of a patent from this list.
