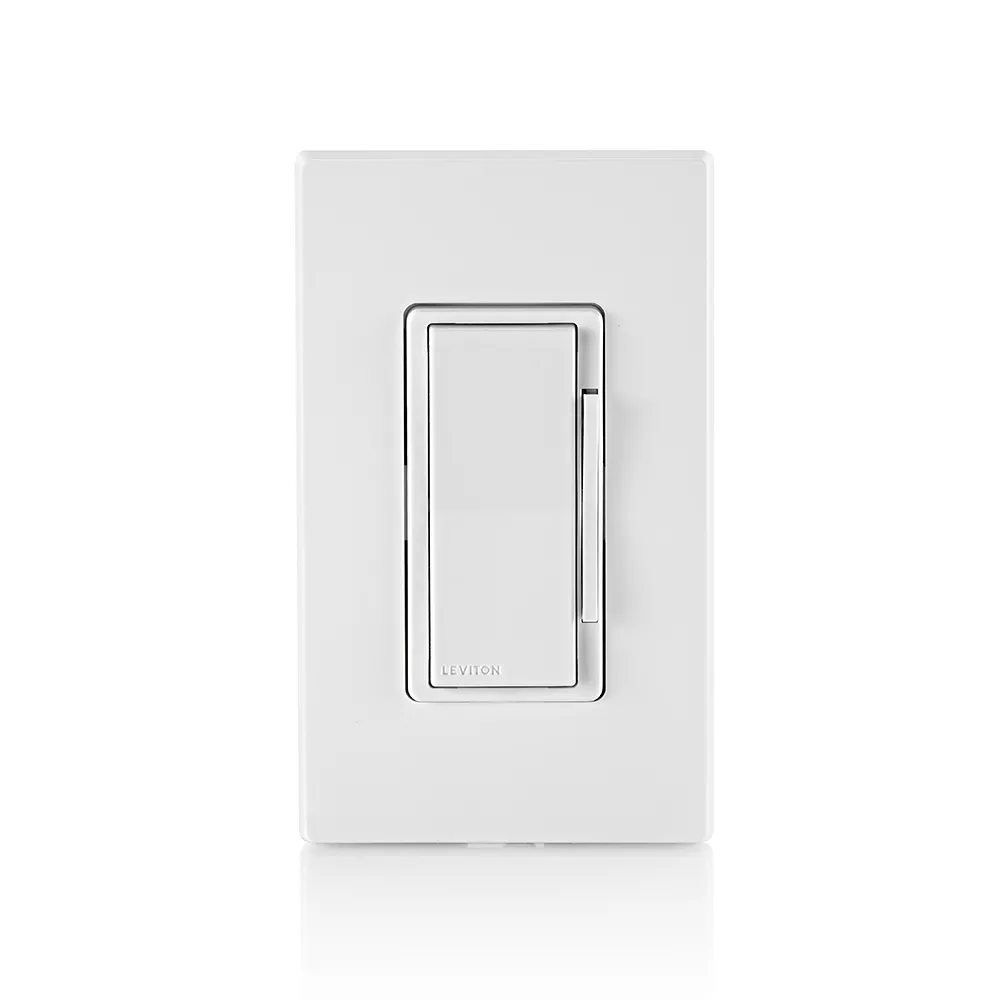

Decora Smart Fan Speed Controller, Wi-Fi 2nd Gen, Neutral Wire Required
D24SF-1BW
Decora Smart Fan Speed Controller, single pole, 3-way, or multi-location when used with Wired Switch or Dimmer Companions or Wire-Free Anywhere Dimmer or Switch Companions. For use with overhead ceiling paddle fans not to exceed 1.5A maximum load, neutral wire required – White.
BENEFITS
- Don't worry about stale air – make your existing ceiling fan smart to circulate airflow and improve the wellness of your home
- Never reach for the pull chain again –schedule when your ceiling fans run and at what speed, or use an auto-shutoff timer to turn them off automatically
- Add multiple speed options – replace your existing on/off fan switch to add quiet 4-speed control of your ceiling fan (low, medium, high, max)
- Control fans in high-up, hard-to-reach places –perfect for rooms with tall or vaulted ceilings
- Use your voice to set your fan speed – works with Google Assistant, Amazon Alexa, and Apple Siri
- Personalize your home – have your fan turn on to the speed you want every time, perfect for bedrooms, home offices, home gyms, and living areas

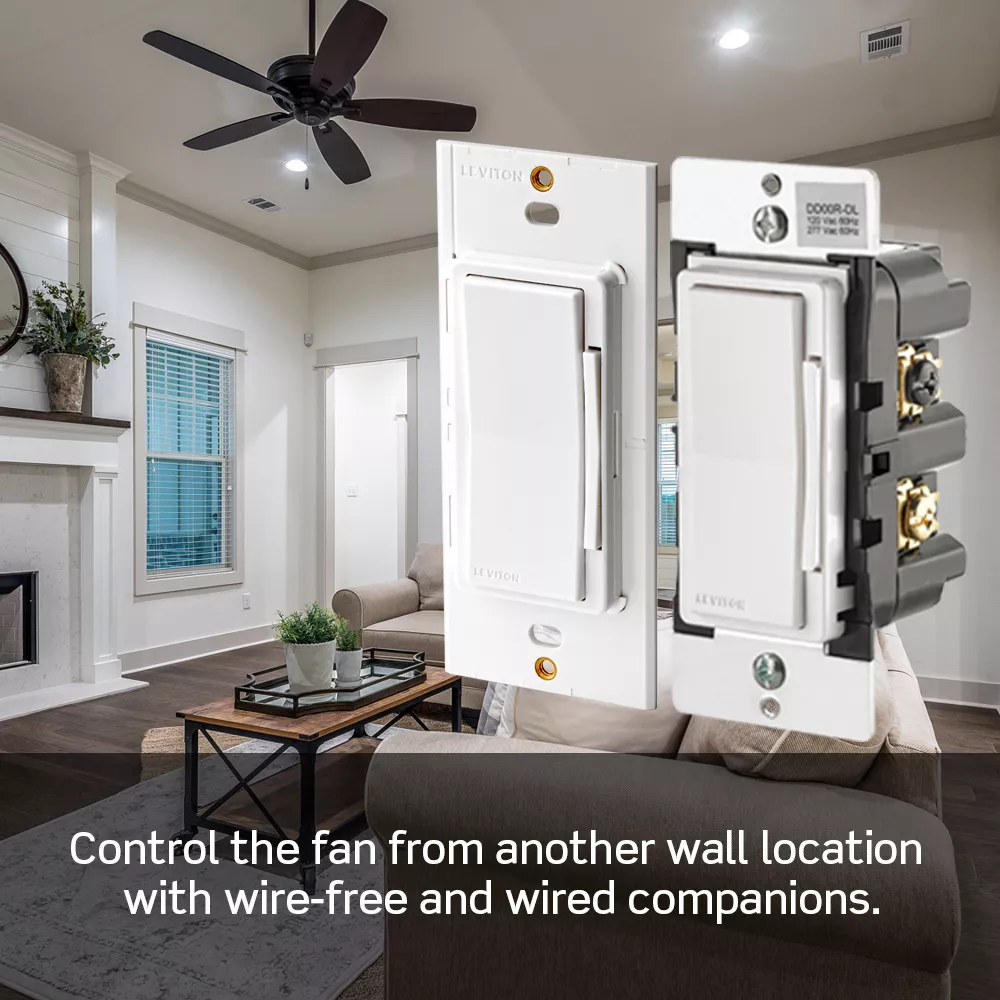

- Control your fan from another wall location in your home without additional wiring – pairs with DAWDC or DAWSC Anywhere Dimmer or Switch Companions
- Smarter energy savings – Use the My Leviton app to control the D24SF Fan Speed Controller with a Leviton D2MSD Motion Sensing Dimmer so your fan turns on when you enter the room and off when you leave
FEATURES
- Quiet fan speed control – On/off control with four speed options including low, medium, high and max
- Works with overhead ceiling fans – rated for up to 1.5A, ideal for pull-chain ceiling fans without electronic control
- Well connected – Works with Alexa, Google Assistant, Apple Home, SmartThings, and IFTTT
- Match your style – it’s easy to change the color using DDKIT to update to Black, Grey, Light Almond, Ivory, or Brown.
- Simple guided setup – works with the My Leviton app, create schedules, activities, scenes and more

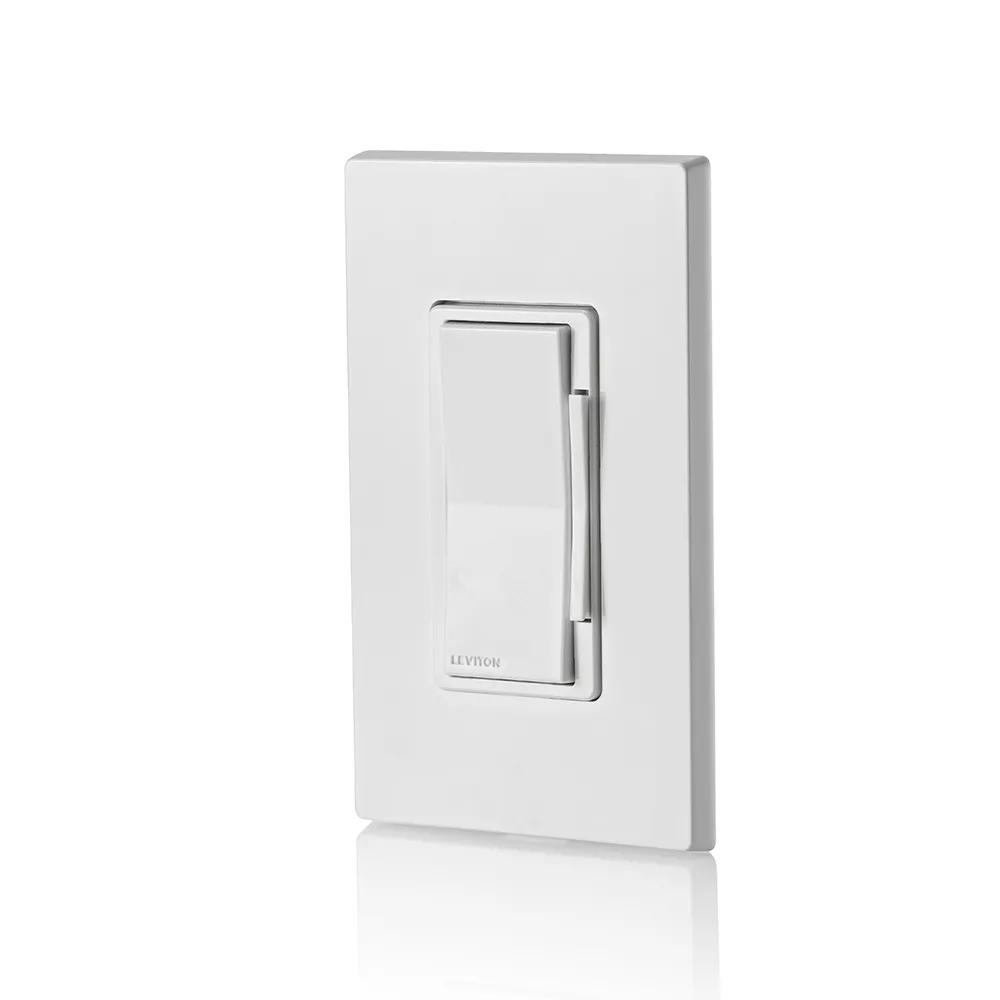

- Easy Install – replaces your existing switch; no hub, slim design, and included screwless wallplate make install a breeze
- Know how fast the fan is going – LEDs on the device light up to show you the fan's current speed
- Single Pole or 3-Way – works with DD00R Wired Dimmer Companion, DD0SR Wired Switch Companion, DAWDC wire-free Anywhere Dimmer Companion, or DAWSC wire-free Anywhere Switch Companion
TECH SPECS
- Requires 2.4 GHz Wi-Fi Network; No hub required with My Leviton app
- Requires Neutral Wire
- Rated for overhead paddle fans without electronic control up to 1.5A motor; not for use with exhaust type fans, lighting loads, or combined ceiling fan light kits
Product Information
Electrical Specifications
Load Rating : 1.5A Fan Motor
Neutral Required : Yes
Termination : Wire Leads
Voltage : 120 VAC
Environmental Specifications
Operating Temperature : 0°C to 40°C
Material Specifications
Color : White
Optional Color Change Kits Available : Yes, DDKIT in White, Ivory, Light Almond, Gray, Black and Brown
Strap Material : Metal
Product Features
Brand : Decora Smart Wi-Fi
Device Type : Fan Speed Controller
Grade : Residential
Hub Required : No
Standards & Certifications
Standards and Certifications : UL, FCC, CSA, NOM
Warranty
Warranty : 2-Year Limited
- Quiet Fan Controller with 4‐forward fan speeds: max, high, medium, low, and off

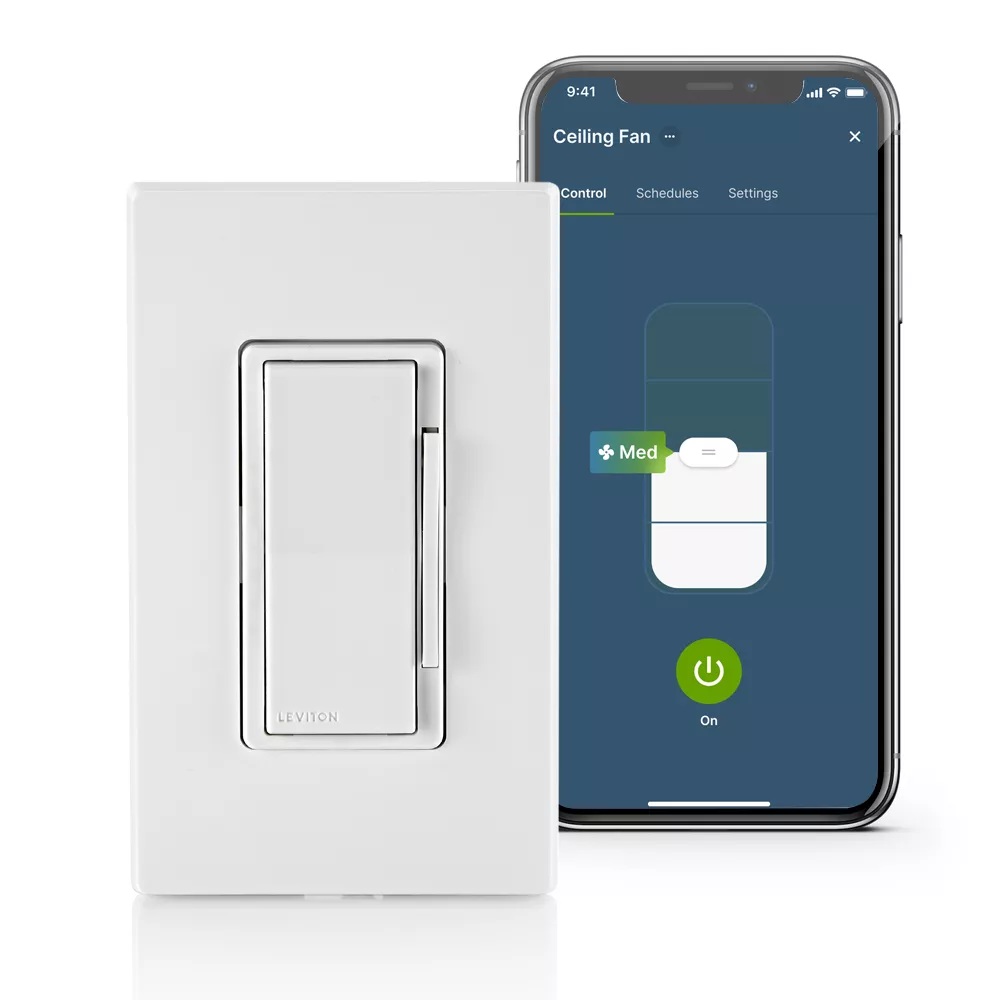

- Adjust the Fan Speed Controller using the My Leviton app, a schedule, by voice, or using the Apple Home app
- Works with My Leviton, Amazon Alexa, Hey Google, HomeKit™/Siri, IFTTT, SmartThings™ and Schlage
- Connects to Wi‐Fi; No hub or bridge required
- Customization options including Auto‐Shutoff Timer, Pre‐Set Speed or Return to Last Speed, Min/Max Speed, Status/Locator and Speed Level LED configuration
- Can be used in 3‐way or multi‐way applications when paired with DAWDC and DAWSC Wire‐Free Anywhere Companions or DD00R and DD0SR Wired Companions

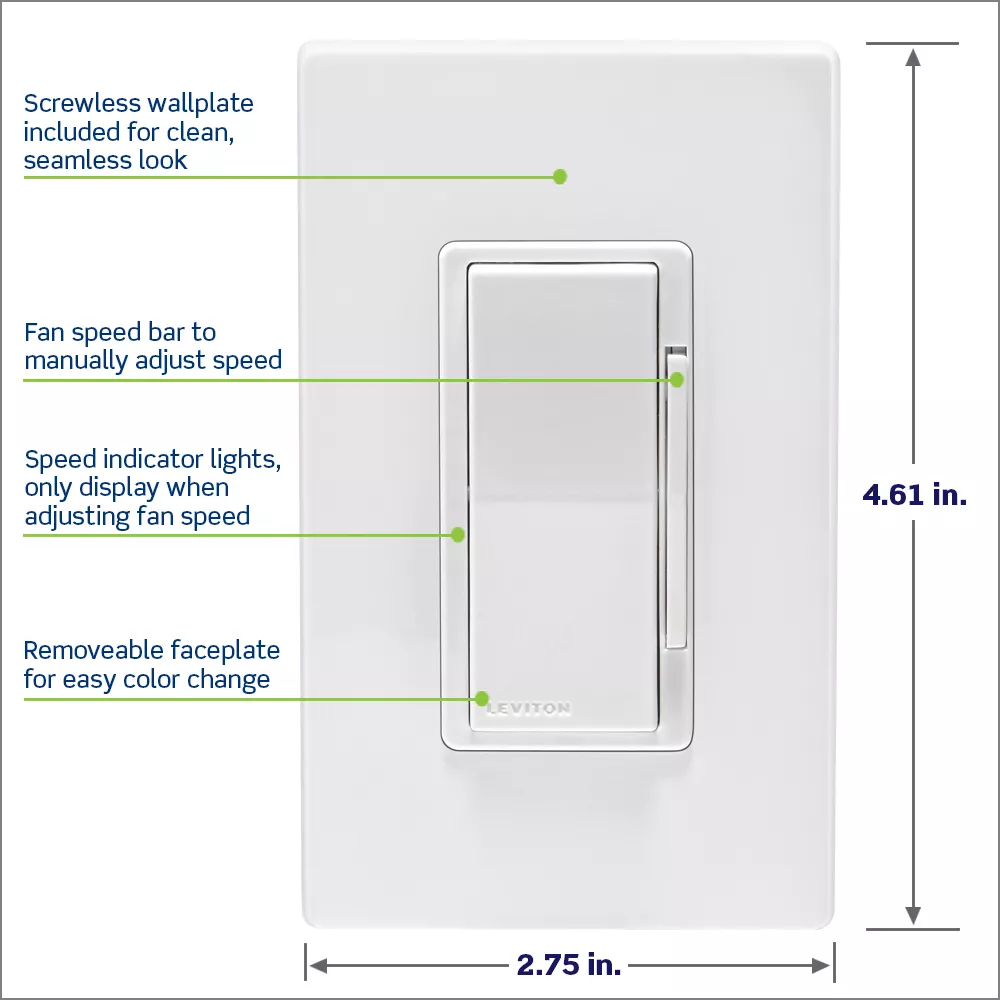

- Decora rocker with fan speed bar and vanishing indicator lights

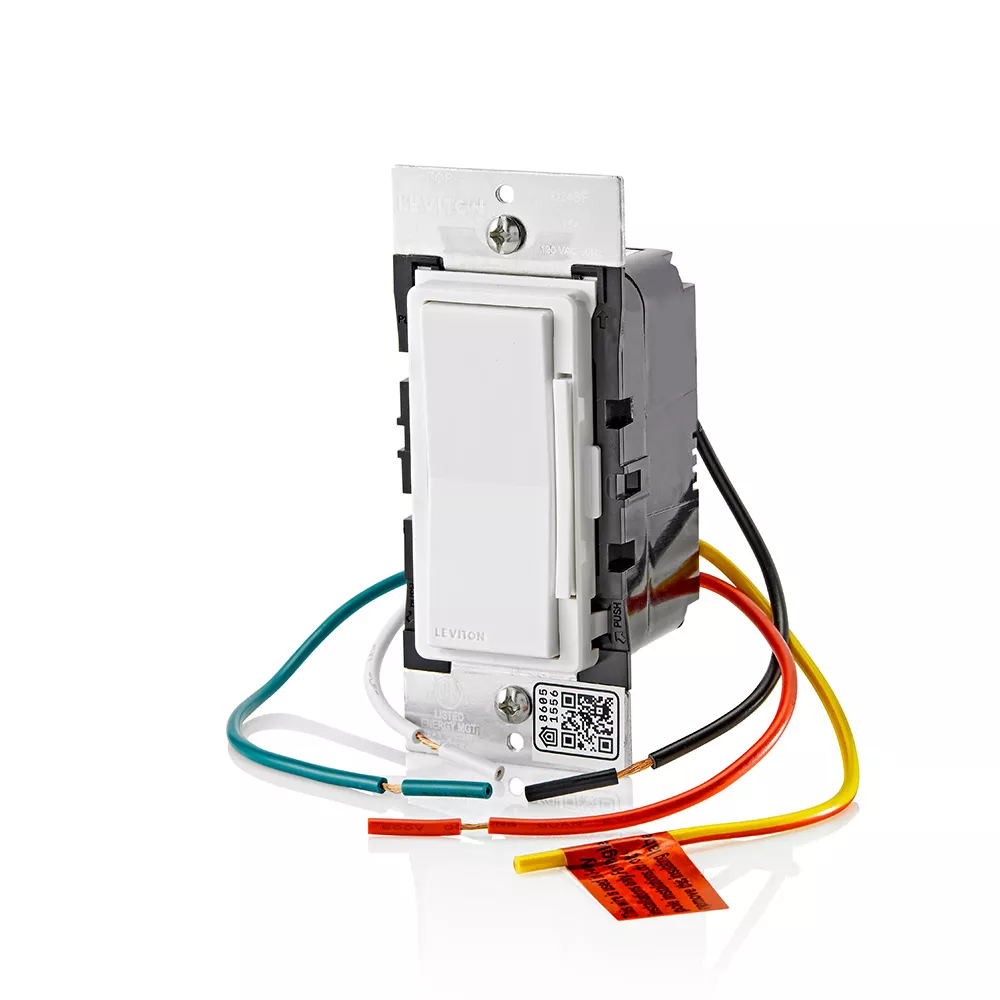

- Wire leads and a product depth of 1.31”
- Requires a neutral wire for installation
- Compatible with DDKIT color change kits in Ivory, Light Almond, Gray, Black, and Brown
- Settings and schedules are stored within the device and schedules will run even during a temporary internet outage
- Compatible with pull chain ceiling fans without electronic control, not to exceed 1.5A maximum load
- Ideal for control of fans mounted on high ceilings
- Not for use with exhaust type fans, lighting loads, or combined ceiling fan light kit
- Ceiling fan light kits can be controlled separately by using the D26HD or DN6HD with MLWSB
- CA2572204
- CA2798964
- MX321054
- US10048653
- US10062528
- US7683755
- US8664886
- US9329607
- US9398667
- US9767973
This list is provided for patent marking purposes only. A good faith effort is made to maintain the accuracy and completeness of this list. No legal inference should be drawn from the omission of a patent from this list.
