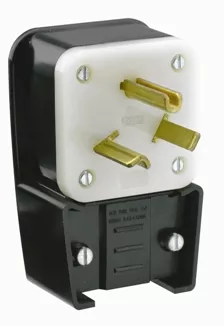

30 Amp, 277 Volt, Straight Blade Plug, Industrial Grade

9730-P

30 Amp, 277 Volt, NEMA 7-30R, 2P, 3W, Matching Angle Plug, Straight Blade, Industrial Grade, Grounding, Side Wired, Steel Strap - Black

UPC Code: 07847780991
Country of Origin : United States
NEMA 7-30P

Product Information

  • Electrical Specifications

    Amperage : 30 A

    Current Limiting : Full Rated Current

    Dielectric Voltage : Withstands 2000V per UL498

    Grounding : Grounding

    Pole : 2

    Temperature Rise : Max 30C after 50 cycles OL at 150 percent rated current

    Voltage : 277 VAC

    Wire : 3

  • Environmental Specifications

    Operating Temperature : -40°C to 60°C

  • Material Specifications

    Assembly Screws : Steel, Zinc Plated

    Blades/Contacts : Solid Brass

    Body Material : Super Tough Nylon

    Color : Black

  • Product Features

    Color : Black

    Device Type : Power Device

    Feature : Angled

    NEMA : 7-30P

    Warranty : 10-Year Limited

  • Standards and Certifications

    ANSI : C-73

    CSA C22.2 No. 42 : File 152105

    NEMA : WD-6

    NOM : 057

    UL498 : File E13399

    Warranty : 10-Year Limited

  • Mechanical Specifications

    Cord Range : .625 - 1.375

    Product ID : Ratings are permanently marked on device

    Terminal Accom. : Up to 4 AWG

    Terminal ID : Brass-Hot, Green-Ground, Silver-Neutral

    Wire Gauge : 10-4 AWG

  • AC Horsepower Ratings

    At Rated Voltage : 3 HP
