8756-2

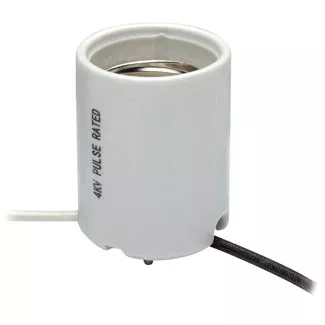

Mogul Base, One-Piece, Keyless, HID, Glazed Porcelain Lampholder, HPS up to 400W, Single Circuit, Back Wired, 4KV-Pulse Rated - White
Product Information
Material Specifications
Circuit : Single Circuit
Feature : 4KV-Pulse Rated
Shell Material : Glazed Porcelain
Termination : 12-Inch 14AWG SEW-2 200C Leads
Voltage : 600 Volt
Wattage Rating : 1500W
Mechanical Specifications
Access : Back Wired
Construction : One-Piece
Lamp Socket Base : Mogul
Lamp Type : HPS up to 400W
Mounting Type : 2 8-32 Screws
Operator Type : Keyless
Termination : 12-Inch 14AWG SEW-2 200C Leads
Product Features
Access : Back Wired
Availability : OEM Only
Center Coil Spring : Stainless Steel
Circuit : Single Circuit
Color : White
Construction : One-Piece
Contact Material : Nickel-Plated Copper-Alloy
Feature : 4KV-Pulse Rated
Lamp Base : Mogul
Lamp Socket Base : Mogul
Lamp Type : HPS up to 400W
Light Type : HID / Mogul
Mounting Type : 2 8-32 Screws
Screw Shell Material : Nickel-Plated Copper Alloy
Shell Material : Glazed Porcelain
Standards and Certifications : UL/CSA
Termination : 12-Inch 14AWG SEW-2 200C Leads
Voltage : 600 Volt
Warranty : 1 Year Limited
Wattage Rating : 1500W
Standards and Certifications
CSA Certified : File LR-1863
UL Listed : File E13402
