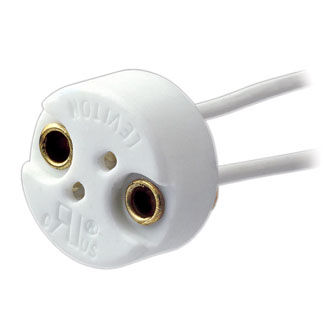

Lampholder, Halogen, Incandescent, Miniature Bi-Pin Base, GX5.3 MR16. Ceramic Body, Mounting Holes, Side Wired

80052

Miniature Bi-Pin Base, GX5.3 MR16, Halogen, Incandescent, Ceramic Body Lampholder, Mounting Holes, , Side Wired, - White
UPC Code: 078477359624
Country of Origin : China

Product Information

  • Material Specifications

    ANSI Lamp Type : GX5.3 MR16

    Access : Side Wired

    Lamp Socket Base : Miniature Bi-Pin

    Shell Material : Ceramic

    Termination : 12-Inch 18AWG SEW-1 200C Glass Braided

    Wire Strip Length : 1/2 Inch

  • Mechanical Specifications

    Max. Amperage : 12 Amp

    Max. Voltage : 250 Volt

    Max. Wattage Rating : 750W

    Termination : 12-Inch 18AWG SEW-1 200C Glass Braided

  • Product Features

    ANSI Lamp Type : GX5.3 MR16

    Access : Side Wired

    Availability : Distribution

    Body Material : Ceramic Body

    Color : White

    Contact Material : Nickel-Plated Copper-Alloy

    Cover Material : Mica

    Lamp Base : Miniature

    Lamp Contacts : Bi-Pin

    Lamp Socket Base : Miniature Bi-Pin

    Light Type : Quartz Halogen

    Mounting Type : Mounting Holes

    Standards and Certifications : UL/CSA

    Termination : 12-Inch 18AWG SEW-1 200C Glass Braided

    Warranty : 1 Year Limited

  • Standards and Certifications

    CSA Certified : File LR-1863

    UL Recognized : Component E13405
