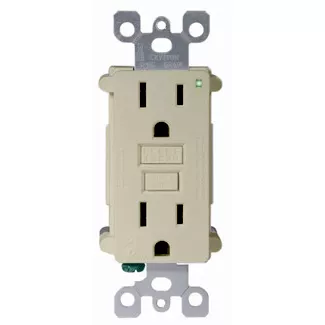

15 Amp SmartlockPro® GFCI Receptacle/Outlet

7599-3I

DISCONTINUED

15 Amp, 125 Volt Receptacle, 20 Amp Feed-Through, Monochromatic, SmartLock Pro GFCI, back and side wired.Bulk packaged. 3 units in a box. Wall plate to be sold separately.Ivory Leviton is the leading manufacturer of Ground Fault Circuit Interrupters (GFCIs) in the electrical industry. Our renowned SmartlockPro brand offers a wide variety of Spec Grade and Hospital Grade GFCIs to protect people from electrical shock in homes, offices hospitals, schools and outdoors. Built with a patented reset lockout feature that blocks the Reset button if GFCI protection has been compromised, the GFCIs meet the latest NEC and UL requirements. You'll find smart choices for every need, including tamper-resistant, weather-resistant, hospital grade, GFCI/switch or GFCI/guide light and pilot light combinations, as well as easy-install slim versions and time-saving Lev-Lok GFCIs. SmartlockPro GFCI protection teams with an LED guide light for safety in the dark. This combination is ideal for installation in home and hotel bathrooms. A photo sensor turns the energy-efficient, long-life LED ON and OFF.

UPC Code: 07847735712

Country of Origin : Please Contact Customer Service

NEMA 5-15R

Product Information

Updated

Instruction Sheet

View

Updated

Dimensional Drawing (DWG)

View

AC Horsepower Ratings
At Rated Voltage : 1 HP
Electrical Specifications
Dielectric Voltage : Withstands 1500V per UL498
Short Circuit Current Rating : 10KA
Temperature Rise : Max 30C after 50 cycles OL at 150 percent rated current
Environmental Specifications
Flammability : Rated V-2 per UL 94
Operating Temperature : -35C to +66C
Material Specifications
Body Material : Polycarbonate
Clamp Nuts : Zinc-Plated Steel
Face Material : Thermoplastic Nylon
Grounding Screw : Plated Steel
Line Contacts : Brass Double-Wipe .031 Thick
Notes : Wallplate Sold Separately
Terminal Screws : Plated Steel
Yoke : Zinc-Plated Steel
Mechanical Specifications
Product ID : Ratings are permanently marked on device
Terminal Accom. : 14-12 AWG
Terminal ID : Brass-Hot, Green-Ground, Silver-Neutral
Product Features
Amperage : 15 A
Body Material : Polycarbonate
Color : Ivory
Face Material : Thermoplastic Nylon
Feature : SmartLock, Buttons Match Face Color
Grounding : GFCI Ground Fault Cir Interrupting
NEMA : 5-15R
Notes : Wallplate Sold Separately
Pole : 2
Standards and Certifications : UL/CSA
Strap Material : Steel
Termination : Back & Side
Trip Level : Class A, 5mA plus or minus 1mA
Voltage : 125 VAC
Warranty : 2-Year Limited
Wire : 3
Standards and Certifications
ANSI : C-73
CSA C22.2 No. 42 : File LR-57811
NEMA : WD-6
NOM : 057
UL 943 : File E48380
UL498 : File E13399
