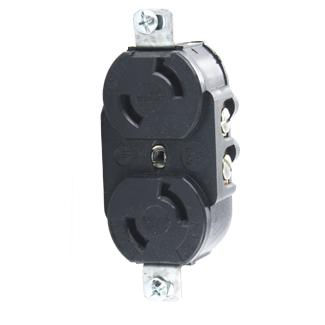

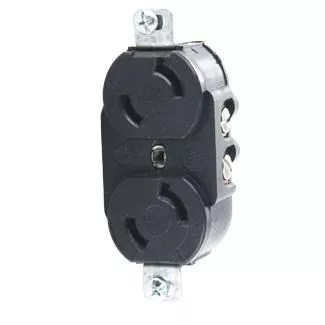

15 Amp, 125 Volt, 2-Pole, 2-Wire, Duplex Receptacle

7540

15 Amp, 125-Volt, 2-Pole, 2-Wire, Nema L1-15R, Non-Grounding, Duplex Receptacle - BLACK

Leviton’s Industrial Grade Locking Devices are built to provide unparalleled quality and superior performance in the most severe industrial settings. Leviton combines the best materials available with superior production standards to produce a broad selection of Locking Devices of unmatched flexibility and dependability.

UPC Code: 078477835685
Country of Origin : Mexico
RoHS Compliant: Yes – Click Here
NEMA L1-15R

Product Information

  • Electrical Specifications

    Amperage : 15 A

    Current Interrupting : Certified for current interrupting at full rated current

    Dielectric Voltage : Withstands 2000V per UL498

    Grounding : Non-Grounding

    Pole : 2

    Temperature Rise : Max 30C at 250 cycles OL at 200 pct rated current

    Voltage : 125 VAC

    Wire : 2

  • Environmental Specifications

    Environment : Dry

    Operating Temperature : -40°C to 75°C

  • Material Specifications

    Blades/Contacts : Brass

    Body Material : Nylon

    Color : Black

    Contact Carrier : Nylon

    Drive Screws : Steel, Zinc Plated

    Grounding Screw : Brass

    Mounting Screws : Nickel Plated Brass

    Terminal Clamp : Cold Rolled Steel, Nickel Plated

    Terminal Retainer : Polycarbonate

    Terminal Screws : Brass 8-32

  • Mechanical Specifications

    Product ID : Ratings are permanently marked on device

    Screw Terminal Torque : 14 in-lbs

    Terminal Accom. : 18-10 AWG

    Terminal ID : Brass-Hot, Silver-Neutral

  • Product Features

    Color : Black

    NEMA : L1-15R
