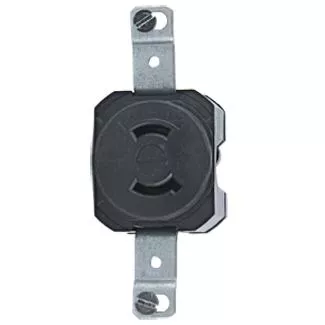

15 Amp, 125 Volt, 2-Pole, 2-Wire, Single Receptacle

7535

15 Amp, 125-Volt, 2-Pole, 2-Wire, Nema L1-15R, Non-Grounding, Single Receptacle - BLACK

Leviton’s Industrial Grade Locking Devices are built to provide unparalleled quality and superior performance in the most severe industrial settings. Leviton combines the best materials available with superior production standards to produce a broad selection of Locking Devices of unmatched flexibility and dependability.

UPC Code: 078477835692
Country of Origin : Mexico
RoHS Compliant: Yes – Click Here
NEMA L1-15R

Product Information

  • Material Specifications

    Base Material : RTP

    Clamp Nuts : Brass

    Color : Black

    Contact - Spring Value : .031" Brass

    Cover Material : Nylon

    Ground Contacts : Brass

    Grounding Screw : Brass

    Mounting Screws : Zinc-Plated Steel 8-32

    Strap Material : Zinc-Plated Steel

    Terminal Screws : Brass 8-32

  • Environmental Specifications

    Environment : Dry

    Operating Temperature : -40°C to 75°C

  • Electrical Specifications

    Amperage : 15 A

    Current Interrupting : Certified for current interrupting at full rated current

    Dielectric Voltage : Withstands 2000V per UL498

    Grounding : Non-Grounding

    Pole : 2

    Temperature Rise : Max 30C after 250 cycles OL at 200 percent rated current

    Voltage : 125 VAC

    Wire : 2

  • Product Features

    Color : Black

    NEMA : L1-15R

  • Mechanical Specifications

    Product ID : Ratings are permanently marked on device

    Screw Terminal Torque : 14 in-lbs

    Terminal Accom. : 18-10 AWG

    Terminal ID : Brass-Hot, Silver-Neutral
