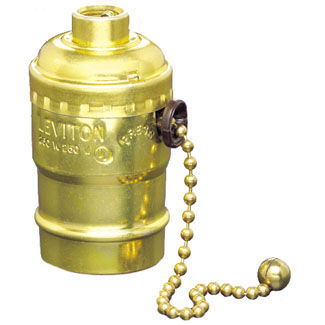

Lampholder, Incandescent, Metal Shell, Medium Base, Pull Chain

7092

DISCONTINUED
Incandescent lampholder, metal shell, medium base; 250W-250V; pull chain, with cap and shell; cap with set screw. Polished gilt finish.
UPC Code: 078477072080
Country of Origin : Mexico
RoHS Compliant: Yes – Click Here

Product Information

  • Standards and Certifications

    CSA Certified : File LR-1863

    NOM Certified : 057

    UL Listed : File E3810

  • Mechanical Specifications

    Construction : Complete

    Feature : For 3-Way 2-Filament Lamps

    Lamp Socket Base : Medium

    Operator Type : Pull Chain

    Pipe Mount : 1/8 IPS Tapped Bushing w/Set Screw

    Sequence : LO-MED-HI-OFF

    Set Screw Thread : 8-32

    Style Name : Electrolier

    Termination : 2 Terminal Screws

  • Product Features

    Availability : Distribution

    Circuit : 2-Circuit

    Construction : Complete

    Feature : For 3-Way 2-Filament Lamps

    Finish : Polished Gilt

    Lamp Base : Medium

    Lamp Socket Base : Medium

    Lampholder Type : Pull Chain

    Light Type : Incandescent

    Operator Type : Pull Chain

    Pipe Mount : 1/8 IPS Tapped Bushing w/Set Screw

    Sequence : LO-MED-HI-OFF

    Shell Material : Aluminum

    Standards and Certifications : UL/CSA/NOM

    Style Name : Electrolier

    Termination : 2 Terminal Screws

    Voltage : 250 Volt

    Wattage Rating : 250W

  • Material Specifications

    Availability : Distribution

    Color : Brass

    Finish : Polished Gilt

    Interior Material : Phenolic

    Pull Chain : 6-Brass

    Screw Shell Material : Aluminum

    Shell Material : Aluminum

    Terminal Screws : Brass
