7090-NI

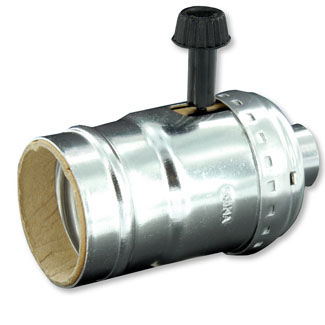

Medium Base Complete, Aluminum Shell Incandescent Lampholder, Removeable Turn Knob, 2-Circuit, 1/8 IPS Tapped Bushing w/Set Screw, For 3-Way 2-Filament Lamps - Nickel

UPC Code: 078477071922
Country of Origin : Mexico

Product Information

  • Mechanical Specifications

    Circuit : 2-Circuit

    Mounting Type : Pipe Mount

    Operator Type : Removable Turn Knob

    Termination : 2 Terminal Screws

    Voltage : 250 Volt

    Wattage Rating : 250W

  • Product Features

    Availability : Distribution

    Circuit : 2-Circuit

    Color : Nickel

    Construction : Complete

    Feature : For 3-Way 2-Filament Lamps

    Finish : Polished Aluminum

    Interior Material : Phenolic

    Lamp Base : Medium

    Lamp Socket Base : Medium

    Lampholder Type : Shell Lampholders

    Light Type : Incandescent

    Operator Type : Removable Turn Knob

    Pipe Mount : 1/8 IPS Tapped Bushing w/Set Screw

    Screw Shell Material : Aluminum

    Sequence : LO-MED-HI-OFF

    Shell Material : Aluminum

    Standards and Certifications : UL/CSA/NOM

    Style Name : Electrolier

    Terminal Screws : Brass

    Termination : 2 Terminal Screws

    Voltage : 250 Volt

    Wattage Rating : 250W

  • Standards and Certifications

    CSA Certified : File LR-1863

    NOM Certified : 057

    UL Listed : File E3810

  • Material Specifications

    Construction : Complete

    Feature : For 3-Way 2-Filament Lamps

    Finish : Polished Aluminum

    Lamp Socket Base : Medium

    Mandrel Thread : 4-36

    Operator Type : Removable Turn Knob

    Pipe Mount : 1/8 IPS Tapped Bushing w/Set Screw

    Sequence : LO-MED-HI-OFF

    Set Screw Thread : 8-32

    Shell Material : Aluminum

    Style Name : Electrolier
