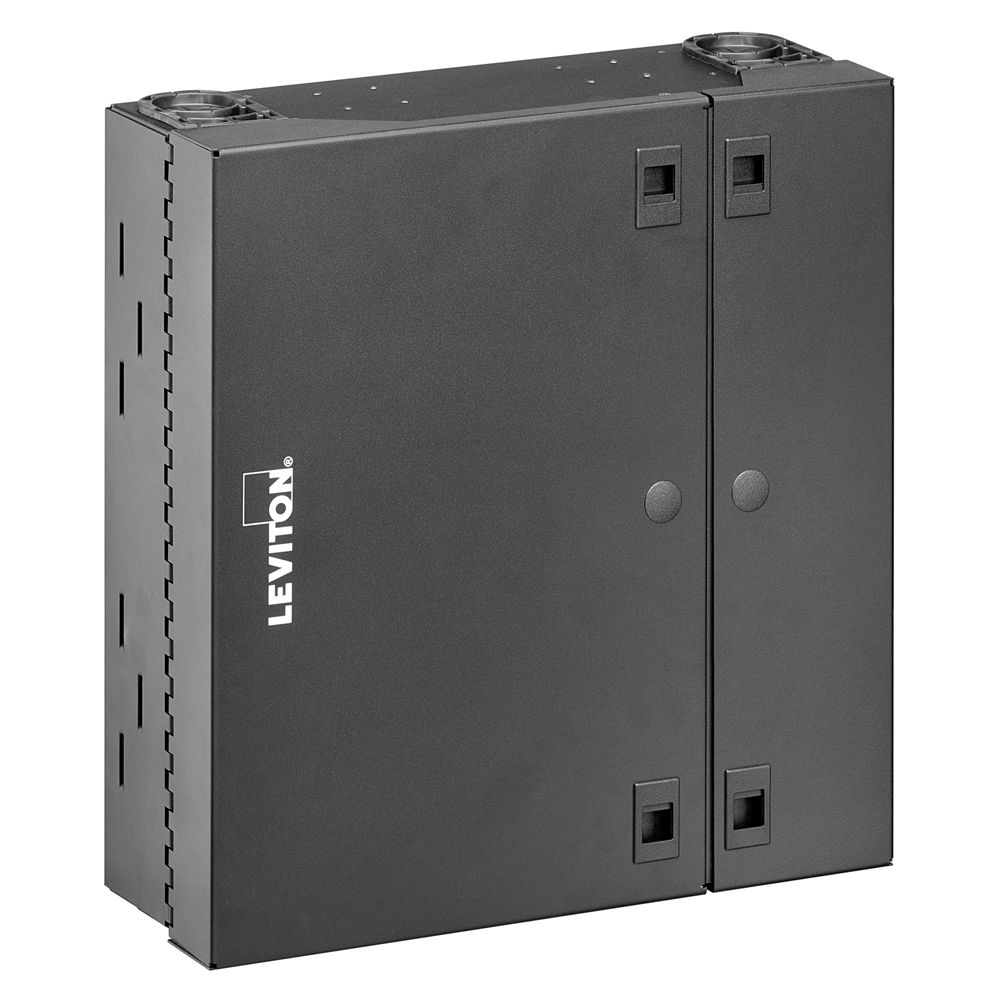

Large SDX Wall-Mount Fiber Enclosure, empty with dual door, no lock


OPT-X SDX Wall-Mount Fiber Optic Enclosures allow for inter-connect or cross-connect between cable and active equipment while using minimum wall space. The enclosure features and design allow for easy field termination of fiber connectors, splicing, or pre-terminated plug-and-play solutions. The fiber enclosures are primarily used in controlled indoor applications, such as in entrance facilities, equipment rooms, and telecommunications rooms.

UPC Code: 078477824986
Country of Origin : Mexico
RoHS Compliant: Yes – Click Here

Product Information

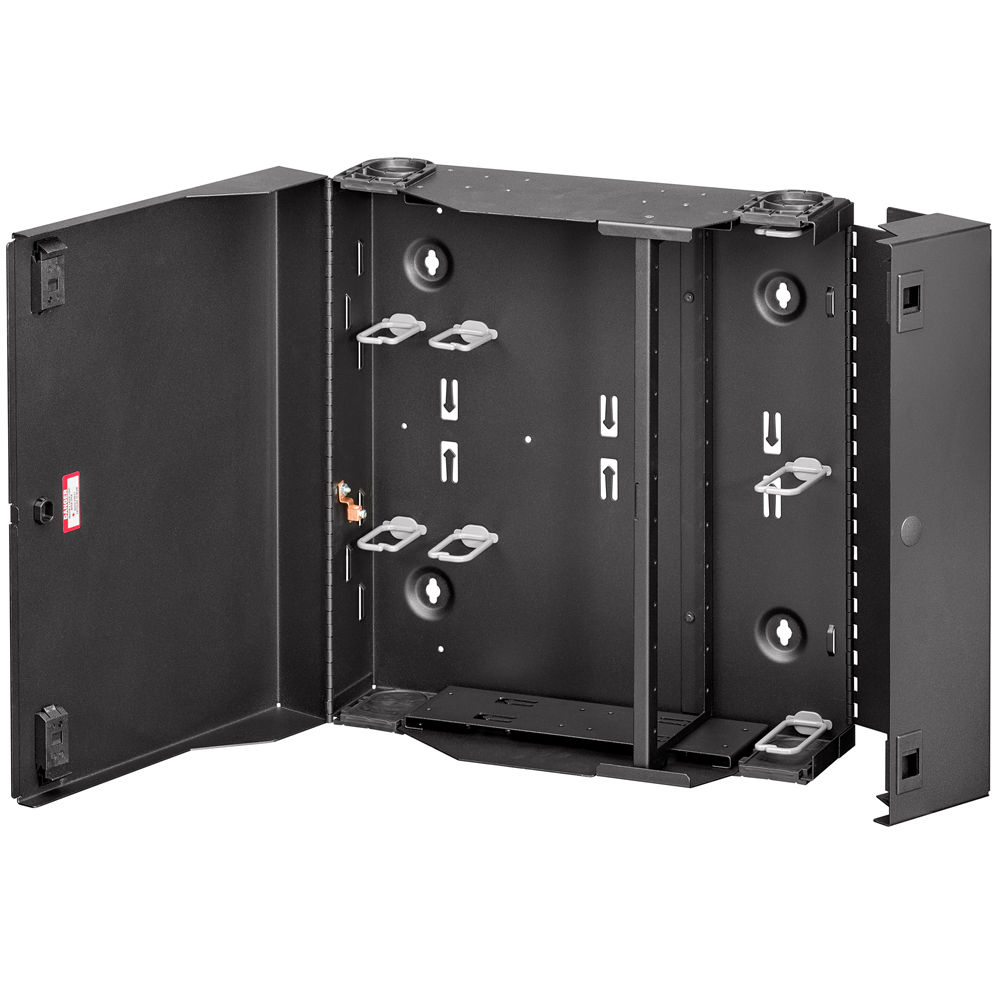

  • Dual doors (service side and customer side) with slam latches for ease of access
  • Low-profile (depth), small-size enclosure minimizes protrusion from the wall
  • Large-size enclosure can be retrofitted in field for splice only enclosure (accepts up to 24 splice trays)
  • Accepts SDX Adapter Plates, Splice Modules, MTP Cassettes, and Splice Trays for multiple solution capabilities
  • Removable cable entry/exit grommets allow for pre-terminated fiber trunk install, cable protection, and minimizes dust buildup
  • Constructed of 16-gauge steel for enhanced durability
  • Ground lug provided for added cable strain relief protection and grounding of armored cable
  • Optional cable strain-relief mounting kit (installed on service side) protects incoming fiber cable
  • Optional key/lock kit secures service-side door or service-side and customer-side doors
  • Optional HDX-to-SDX conversion adapter bracket accepts HDX Adapter Plates and HDX Cassettes
