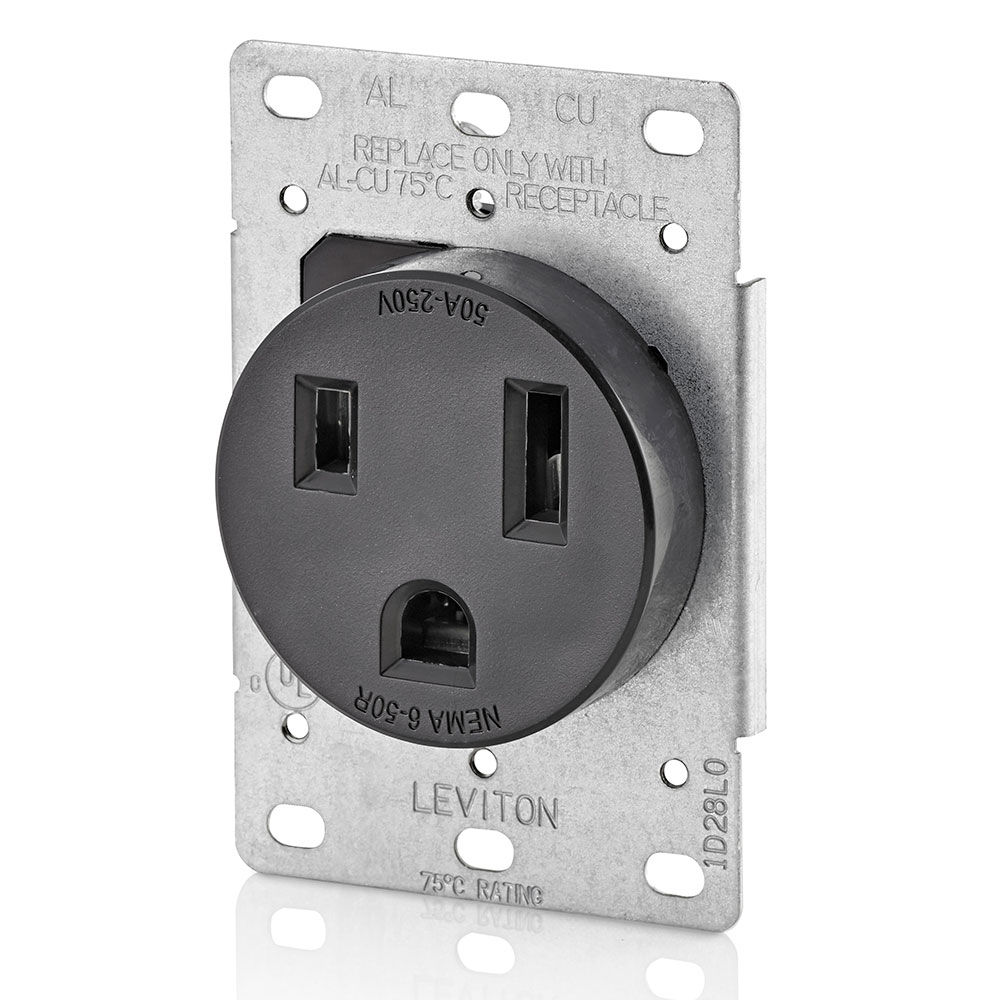

50 Amp, 250 Volt, 2P, 3W, Flush Mtg Receptacle, Straight Blade, Industrial Grade, Grounding, Black

5374-S00

50 Amp, 250 Volt, NEMA 6-50R, 2P, 3W, Flush Mtg Receptacle, Straight Blade, Industrial Grade, Grounding, Side Wired, Steel Strap - Black WARNING: Do not use with single-gang wallboxes, single-gang mud rings or single-gang box extenders. Built of durable thermoplastic, Leviton Power Receptacles — come equipped with heavy-gauge, double-wire copper alloy contacts. Flush mount receptacles fit Leviton’s wide range of 2.15”-diameter wallplates and mounting hardware is included.

Where to Buy

Add to Project List

Product Support

UPC Code: 078477695401

Country of Origin : Mexico

NEMA 6-50R

Product Information

Updated

AC Horsepower Ratings
At Rated Voltage : 3 HP
Electrical Specifications
Amperage : 50 A
Current Limiting : Full Rated Current
Dielectric Voltage : Withstands 2000V per UL498
Grounding : Grounding
Pole : 2
Temperature Rise : Max 30C after 50 cycles OL at 150 percent rated current
Voltage : 250 VAC
Wire : 3
Environmental Specifications
Flammability : Rated V-2 per UL 94
Operating Temperature : -40°C to 60°C
Material Specifications
Body Material : Polypropylene
Color : Black
Face Material : Polypropylene
Line Contacts : Brass Double-Wipe
Strap Material : Galvanized Steel
Mechanical Specifications
Product ID : Ratings are permanently marked on device
Terminal Accom. : #4 AWG
Terminal ID : Brass screws = Hot; Green screw = Ground
Product Features
Color : Black
NEMA : 6-50R
Standards and Certifications
ANSI : C73
CSA : 22.2 No 42, C22.2 No.14, C22.2 No.65
File : E13399
NEMA : WD-6
NOM : NOM - ANCE
UL : UL 498, UL 486E
Warranty : 10-Year Limited
