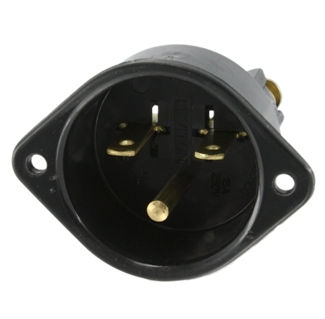

15 Amp, 250 Volt, Flanged Inlet Receptacle, Straight Blade, Commercial Grade

5240

15 Amp, 250 Volt, NEMA 6-15P, 2P, 3W, Flanged Inlet Receptacle, Straight Blade, Commercial Grade, Grounding, Back Wired, Thermoplastic Nylon Strap - BLACK

Leviton's commercial/industrial grade flanged wiring devices are available in 15A & 20A versions and feature heavy duty construction for many years of service life.

Color: Black

UPC Code: 078477229002
Country of Origin : Mexico
RoHS Compliant: Yes – Click Here
NEMA 6-15P

Product Information

  • Environmental Specifications

    Flammability : Rated V-2 per UL 94

    Operating Temperature : -40°C to 60°C

  • Mechanical Specifications

    Cord Range : .245 - .700

    Product ID : Ratings and NEMA I.D. permanently marked on device

    Terminal Accom. : 18-12 AWG

    Terminal ID : Brass-Hot, Green-Ground, White-Neutral

    Termination : Back

  • Standards and Certifications

    ANSI : C-73

    CSA C22.2 No. 42 : File LR-406

    NEMA : WD-6

    NOM Certified : 057

    UL : Listed

  • Electrical Specifications

    Amperage : 15 A

    Current Interrupting : Certified for current interrupting at full rated current

    Dielectric Voltage : Withstands 2000V per UL498

    Grounding : Grounding

    Pole : 2

    Temperature Rise : Max 30C after 50 cycles OL at 150 percent rated current

    Voltage : 250 VAC

    Wire : 3

  • Product Features

    Color : Black

    NEMA : 6-15P

  • Material Specifications

    Body Material : Nylon

    Color : Black

    Face Material : Nylon

    Strap Material : Thermoplastic Nylon
