Electrical Specifications

Amperage : 20 A

Current Interrupting : Certified for current interrupting at full rated current

Dielectric Voltage : 3000V for 1 min.

Endurance : Up to 5000 connects and disconnects, under load, at full rated current and voltage

Insulation Resistance : 500V for 1 min; >= 5MΩ

Phase : 3-Phase WYE

Pole : 4

Voltage : 347/600 VAC

Wire : 5

Environmental Specifications

Corrosion Resistance : Ferrous parts immersed in 20°C, 10 percent ammonium chloride solution for 10 min

Flammability : Rated V-2 per UL 94

IP Rating : IP67/IP69K

Moisture Resistance : Per UL 1682, immersed for 24 hours in 5cm of 25°C water

Material Specifications

Body Material : Valox 357

Contact Carrier : Nylon

Gasket Material : Chloroprene

Locking Ring : Valox 357

Mounting Flange : Valox 357

Phase and Ground Pins : Brass

Terminal Screws : Steel

Product Features

Color : Black

Configuration : North American

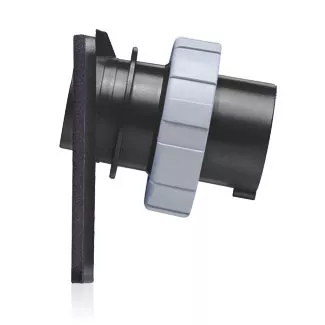

Device Type : Inlet

IEC Rating : 60309-1 and 60309-2

Series : Standard Series

Standards and Certifications

CE Marking : Per low voltage directives 73/23/EEC, 93/68/EEC

CSA Certified : C22.2 No 182.1

IEC Rating : 60309-1 and 60309-2

UL Listed : 1682 and 1686

Warranty : 2-Year Limited
