49875-2

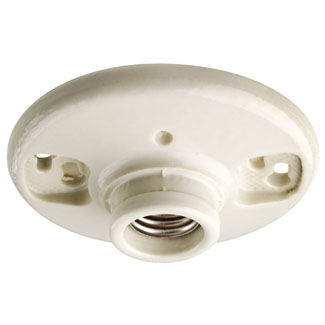

660W/250V Medium Base One-Piece Glazed Porcelain Outlet Box Mount Incandescent Lampholder, Keyless, Single Circuit, 2 Screws with Case Lip, Top Wired - White Leviton produces lamp holders for virtually every light source equipped with incandescent, fluorescent, or LED lamps. Lamp-holders include incandescent medium base, and specialty sizes & fluorescent lamp holders, in addition to a large line of porcelain lamp holders including pulse-rated mogul-base products, and an extensive selection of devices for high-intensity lamps.

Where to Buy

Add to Project List

Product Support

UPC Code: 078477182871

Country of Origin : China

RoHS Compliant: Yes – Click Here

Product Information

Updated

Instruction Sheet (English, French, Spanish)

View

Electrical Specifications
Availability : Distribution
Circuit : Single Circuit
Construction : One-Piece
Fits Outlet Box Size : 3-1/4 or 4 Inch
Lamp Socket Base : Medium
Max. Lamp Wattage : 660W
Mounting Type : Twist-Lock
Operator Type : Keyless
Sequence : ON-OFF
Standards and Certifications : UL/CSA, NOM
Termination : 6 Inch Pigtail Leads
Warranty : 1-Year Limited
Wiring Access : Top Wired
Material Specifications
Availability : Distribution
Body Material : Glazed Porcelain
Circuit : Single Circuit
Color : White
Fits Outlet Box Size : 3-1/4 or 4 Inch
Lamp Socket Base : Medium
Mounting Type : Twist-Lock
Operator Type : Keyless
Sequence : ON-OFF
Shell Material : Aluminum
Socket Shell Material : Aluminum
Termination : 6 Inch Pigtail Leads
Mechanical Specifications
Circuit : Single Circuit
Fits Outlet Box Size : 3-1/4 or 4 Inch
Lamp Socket Base : Medium
Max. Lamp Wattage : 660W
Mounting Type : Twist-Lock
Operator Type : Keyless
Termination : 6 Inch Pigtail Leads
Torque Range : 14 – 18 in.-lbs
Wiring Access : Top Wired
Product Features
Availability : Distribution
Body Material : Glazed Porcelain
Color : White
Construction : One-Piece
Lamp Base : Medium
Lampholder Type : Outlet Box Mount
Light Type : Incandescent
Sequence : ON-OFF
Socket Shell Material : Aluminum
Standards and Certifications : UL/CSA, NOM
Warranty : 1-Year Limited
Standards and Certifications
CSA Certified : File LR-1863
UL Listed : File E3810
