15 Amp, 250 Volt, Single Locking Receptacle, Industrial Grade

4870

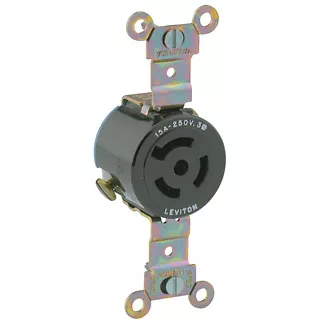

15 Amp, 250 Volt 3-Phase, NEMA L11-15R, 3P, 3W, Single Locking Receptacle, Industrial Grade, Non-Grounding - BLACK

Leviton’s Industrial Grade Locking Devices are built to provide unparalleled quality and superior performance in the most severe industrial settings. Leviton combines the best materials available with superior production standards to produce a broad selection of Locking Devices of unmatched flexibility and dependability.

UPC Code: 078477797105
Country of Origin : Mexico

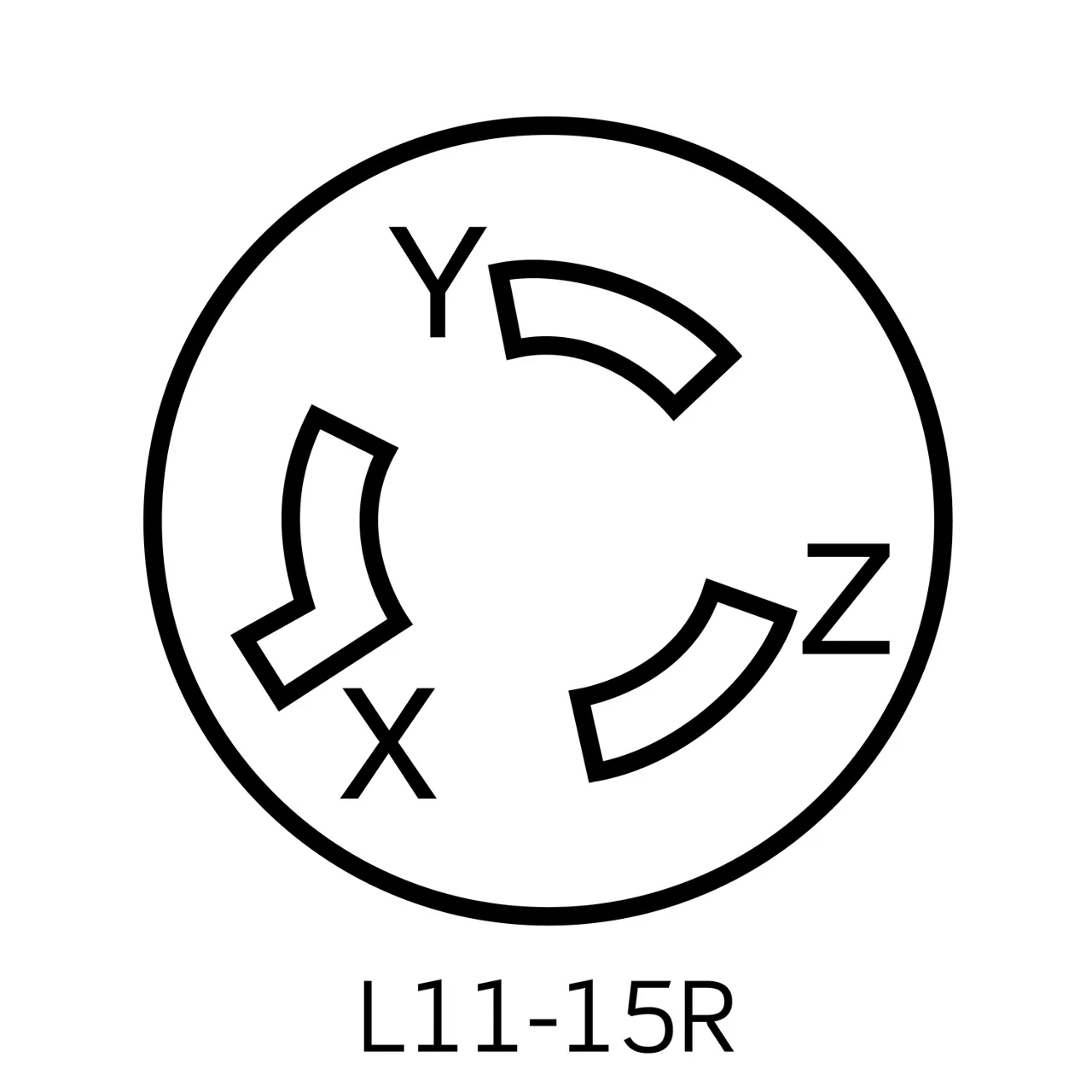

NEMA L11-15R

Product Information

  • Electrical Specifications

    Phase : 3-Phase

  • Environmental Specifications

    Environment : Dry

  • Mechanical Specifications

    Screw Terminal Torque : 14-18 in-lbs

  • Product Features

    Amperage : 15 A

    Body Material : Nylon

    Color : Black

    Device Type : Locking Receptacle

    Face Material : Nylon

    Grounding : Non-Grounding

    NEMA : L11-15R

    Pole : 3

    Standards and Certifications : UL/CSA

    Strap Material : Steel

    Termination : Side

    Voltage : 250 VAC

    Warranty : Limited Lifetime Warranty Warranty

    Wire : 3

  • Single piece brass contact provides longer life and continuous conductivity vs multi-piece riveted styles
  • Extra thick, corrosion resistant nickel plated brass strap
  • Amperage, voltage, NEMA configuration, and Manufacturer molded into face lasts longer than stamping and makes for fast, easy identification and replacement
  • Terminal identification molded into the body lasts longer than stamping
  • Nickel plated brass clamp type terminals support back and side wiring and resist corrosion
  • Color-coded voltage ID ring on face for quick visual identification
  • UL V-0 flammability rating
