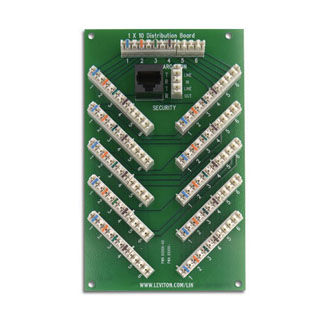

1x10 (6-Line) Bridged Telephone Expansion Board
47609-S10
Leviton’s three new Telephone Expansion Board offerings are designed for use in Leviton’s Structured Media Enclosures, including the Multi Dwelling Unit (MDU) Enclosure and the Series 140, 280 and 420 Structured Media Centers (SMC’s) to support a variety of telephone distribution configurations. They quick-snap into molded-in brackets in Leviton’s MDU Enclosure, or can be attached to Leviton Pre-Configured Structured Cabling Panels, Single Plastic Brackets or Expansion Plastic Brackets for mounting in Series 140, 280 and 420 Structured Media Centers.
Product Information
Dimensional Data
Depth : 0.63 Inch
Height : 5.75 Inch
Width : 3.50 Inch
Mechanical Specifications
Telephone Bridge : Eleven Bridged 6-Pair 110-IDC, 1 RJ45
Product Features
1X10 6-Line Brdg Tele and Security : 1
Description : 1X10 6-Line Bridged Telephone and Security
Standards and Certifications : UL
Type : Expansion Board
Warranty : 2-Year Limited
Standards and Certifications
UL Listed : Recognized Component
Structured Media Components
1X10 6-Line Brdg Tele and Security : 1
- Bridge up to 6 telephone lines to 10 locations.
- Fits easily into Leviton Structured Media Panels.
