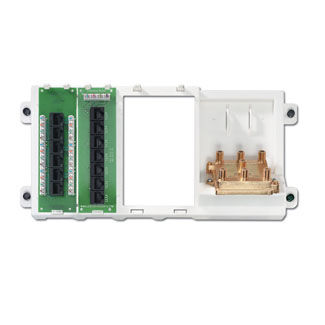

Basic Home Networking Plus (BNP) Panel


Leviton’s Basic Home Networking Plus Panel combines a Telephone Patching Expansion Board, Category 5e Voice & Data Board and a 6-way 2 GHz Video Splitter in a dedicated plastic bracket for essential telephone, video distribution and home networking. Handles up to four telephone lines through to seven connections. Suitable for phone, fax or modem. The panel also features six connections for voice or data.

UPC Code: 078477134153
Country of Origin : Mexico

Product Information

  • Product Features

    6-Way Video Splitter : 1

    Bracket Material : ABS Plastic

    Cat 5e Voice Data Module : 1

    Description : Basic Home Networking Plus

    Standards and Certifications : CULUS/FCC/TIA/EIA

    Telephone Patching Expansion : 1

    Type : Full Size Pre-Configured Cabling Panel

    Warranty : 2-Year Limited

  • Dimensional Data

    Depth : 2.28 Inch

    Height : 6.13 Inch

    Width : 13.3 Inch

  • Standards and Certifications

    CULUS Listed : Yes

    FCC Rated : Part 68 Compliant

    TIA/EIA : 568A

  • Structured Media Components

    6-Way Video Splitter : 1

    Cat 5e Voice Data Module : 1

    Telephone Patching Expansion : 1

  • Mechanical Specifications

    Cat 5e Voice Data : Six Catagory 5e ports and six 110-IDC Conn.

    Telephone Patching Expansion : 1

    Video Splitter : 1 F-Type Female Input, 6 F-Type Female Output

    Video Splitter Frequency : 2 GHz

  • Material Specifications

    Bracket Material : ABS Plastic

  • Handles up to six 4-line telephone connections and routes video to 6 locations.
  • Provides data or telephoine to 6 remote locations.
  • Panel includes a plastic bracket, Telephone Patching Expansion Board, and a Catagory 5e Voice and Data Board.
  • Fits into any Leviton Structured Media enclosure or used as a stand-alone unit.
  • Offers essential telephone, video distribution and home networking.

  • US6475019
  • US6626694
  • US6799988

This list is provided for patent marking purposes only. A good faith effort is made to maintain the accuracy and completeness of this list. No legal inference should be drawn from the omission of a patent from this list.
