Advanced Home Telephone and Video Panel
47606-AHT
Advanced Home Telephone and Video Panel. 19 multi-line telephone connections (in various combinations of 2 or 4 lines). Patch data or Telephone service to 12 remote locations. Includes (1) Telephone Line Distribution Module (1) Category 5e Voice and Data Module (1) 6-way 2GHz Video Splitter (6) 8” 8P8C Patch Cords

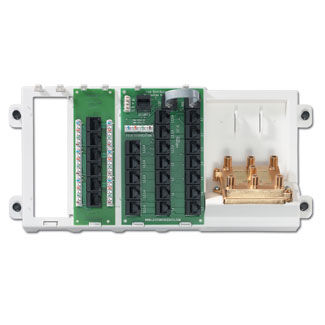

Leviton’s Advanced Home Telephone and Video Panel combines a Telephone Line Distribution Module, Category 5e Voice and Data Board, and a 6-way 2 GHz Video Splitter in a dedicated plastic bracket for multi-line systems with video distribution. Provides two to four lines of service to up to 19 connections. Distribute “Line 1” service to up to 12 different connections; distribute four-line service to up to eight different connections. Route voice and data services to up to 6 remote locations via Category 5e Voice & Data modules. Link with other distribution panels or modules to expand the system.Product Information
Dimensional Data
Depth : 2.28 Inch
Height : 6.13 Inch
Width : 13.3 Inch
Mechanical Specifications
Cat 5e Voice Data : Six Catagory 5e ports and six 110-IDC Conn.
Telephone Line Distribution : 19 8P8C 2-4-Line Dist, 1 Test, 1 Aux, 1 110-IDC
Video Splitter : 1 F-Type Female Input, 6 F-Type Female Output
Video Splitter Frequency : 2 GHz
Product Features
6-Way Video Splitter : 1
Cat 5e Voice Data Module : 1
Description : Advanced Home Telephone and Video
Standards and Certifications : CULUS/FCC/TIA/EIA
Telephone Line Distribution Module : 1
Type : Full Size Pre-Configured Cabling Panel
Warranty : 2-Year Limited
Standards and Certifications
CULUS Listed : Yes
FCC Rated : Part 68 Compliant
TIA/EIA : 568A
Structured Media Components
6-Way Video Splitter : 1
Cat 5e Voice Data Module : 1
Telephone Line Distribution Module : 1
- Provides two to four lines of telephone service to up to 19 connections when combined with other modules.
- Routes video to 6 locations, and voice and data service to 6 remote locations via Category 5e Voice and Data Board.
- Panel includes a plastic bracket, Telephone Line Distribution Module, Category 5e Voice and Data Board and a 6-Way 2 GHz Video Splitter.
- Fits into any Leviton Structured Media enclosure or used as a stand-alone unit.
- Offers multi-line systems with video distribution.
- US6475019
- US6626694
- US6799988
This list is provided for patent marking purposes only. A good faith effort is made to maintain the accuracy and completeness of this list. No legal inference should be drawn from the omission of a patent from this list.
