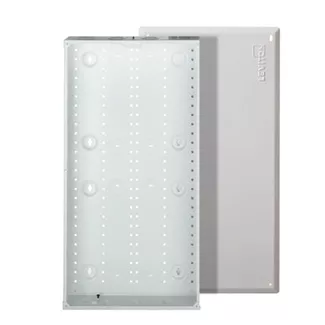

28" Structured Media Enclosure and Flush-Mount Cover, Metal, White
47605-28W
28" Structured Media Enclosures terminate home-run wires from wall outlets and provide a distribution point for voice, data, and video wiring in a residence or multiple dwelling unit. These enclosures are ideal for new installations or retrofits. They can be surface mounted or recessed by mounting between wall studs (on 16-inch centers), using provided wood screws for a clean and professionally finished appearance.
Product Information
Dimensional Data
Depth : 3.85 Inch
Height : 28 Inch
Width : 14.38 Inch
Material Specifications
Color : White
Enclosure Material : Steel
Gauge of Steel : 18 Gauge
Paint Finish : Powder-Coated
Mechanical Specifications
Knockouts : Multiple up to 2 Inch
Max. Module Capacity : 8
Notes : Module count dependant of the type used.
Product Features
Color : White
Depth : 3.85 Inch
Gauge of Steel : 18 Gauge
Height : 28 Inch
Item : Enclosure and Flush Mount Cover
Max. Module Capacity : 8
Notes : Module count dependant of the type used.
Paint Finish : Powder-Coated
Series : Series 280
Standards and Certifications : ACA/CULUS/UL/TIA/EIA/FCC
Warranty : 2-Year Limited
Width : 14.38 Inch
Standards and Certifications
ACA Listed : Yes
CULUS Listed : Yes
FCC Rated : Part 68
TIA/EIA : 568-A 570-A
UL Listed : Fire and Burglary
- Cutout pattern in bottom accommodates single gang or full width
- AC power modules and Mini and Universal DC power supplies
- Mounting slots on the enclosure simplify adjustment for different sheetrock depths
- Sheetrock depth marks (1/2-inch, 5/8-inch and 3/4-inch) on the enclosure simplify alignment
- Lance slots provide clean cable management within the enclosure
- Product may be surface or recess mounted
- Ships with a cardboard insert to help prevent drywall debris or paint overspray from entering the enclosure during the rough-in stage of installation
- Keyhole slots on the cover allow for easier installation
- Multiple knockouts on the top support conduit up to two inches in diameter and facilitate cable routing and entry
- Self-healing foam grommets protect cable bundles
- Holds quarter-, half-, and full-width expansion modules, with the ability to mount most modules vertically or horizontally
- Three enclosure cover types are available: Flush-Mount Cover, Economy Hinged Door, and Premium Vented Hinged Door
