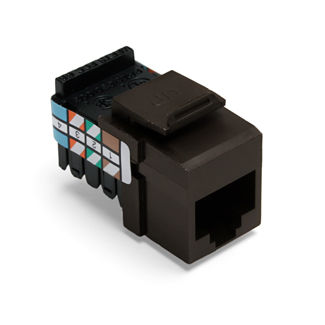

Voice Grade QUICKPORT™ Jack, 8P8C, Brown
41108-RB8
USOC and Voice-Grade modular connectors snap into the entire Leviton QUICKPORT family of workstation housings. These include Multimedia Outlet System (with QUICKPORT module adapter), Decora® Inserts, patch panels, and patch blocks.
Product Information
Environmental Specifications
Flammability : Rated V-0 per UL 94
Material Specifications
Body Color : Brown
Body Material : High-Impact Fire-Retardant Plastic
Contact Base Material : Phosphor Bronze
Contact Sub-Surface Material : 100 microinches thick Nickel-Plated
Contact Surface Material : 50 microinches thick Gold-Plated
Mechanical Specifications
Cable Type : 8-Conductor UTP Copper USOC
Position / Conductor : 8P8C
Termination Type : 110 Punchdown
Performance Specifications
Module Type : USOC Voice Grade
Product Features
Body Color : Brown
Cable Type : 8-Conductor UTP Copper USOC
Contact Base Material : Phosphor Bronze
Contact Sub-Surface Material : 100 microinches thick Nickel-Plated
Contact Surface Material : 50 microinches thick Gold-Plated
Module Style : Connector
Module Type : USOC Voice Grade
Position / Conductor : 8P8C
Termination Type : 110 Punchdown
Warranty : 1-Year Limited
Standards and Certifications
CSA : Certified
FCC : Part 68 Compliant
NEC : Article 800 Compliant
TIA/EIA : TIA-568-B
UL : Listed
