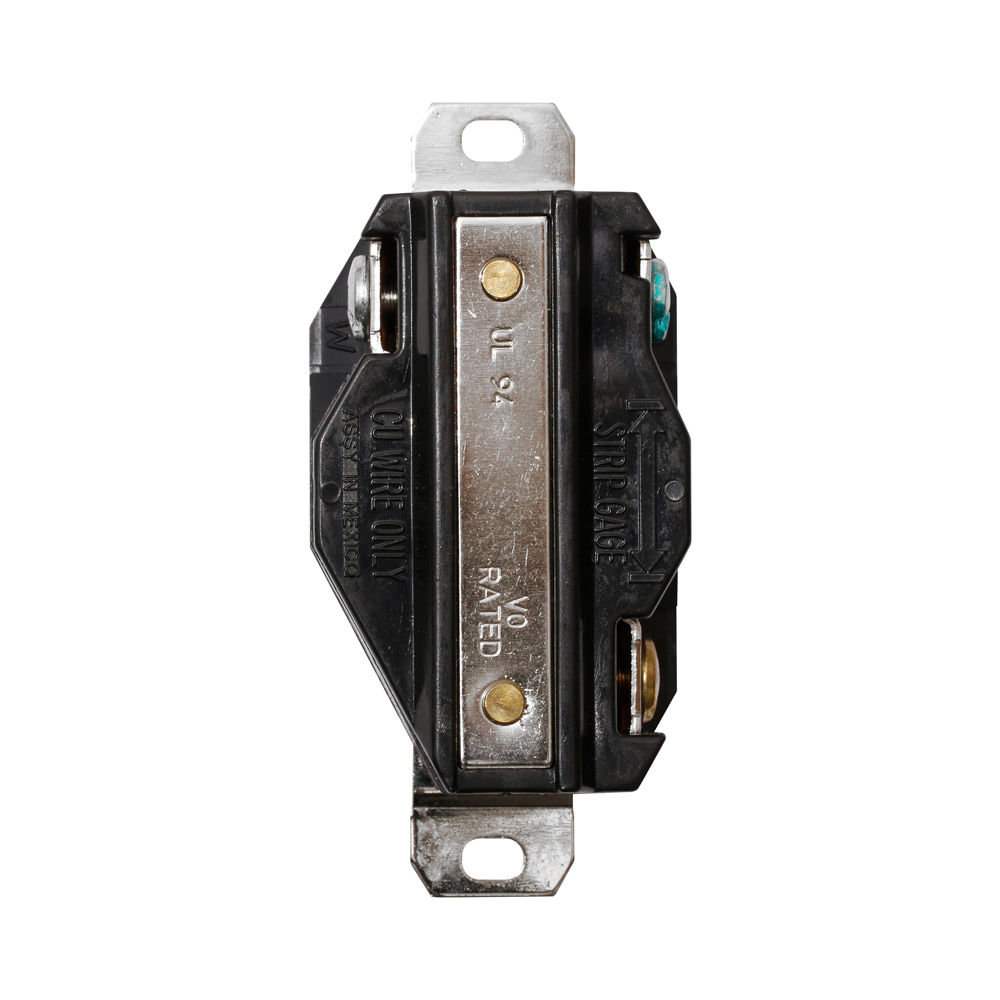

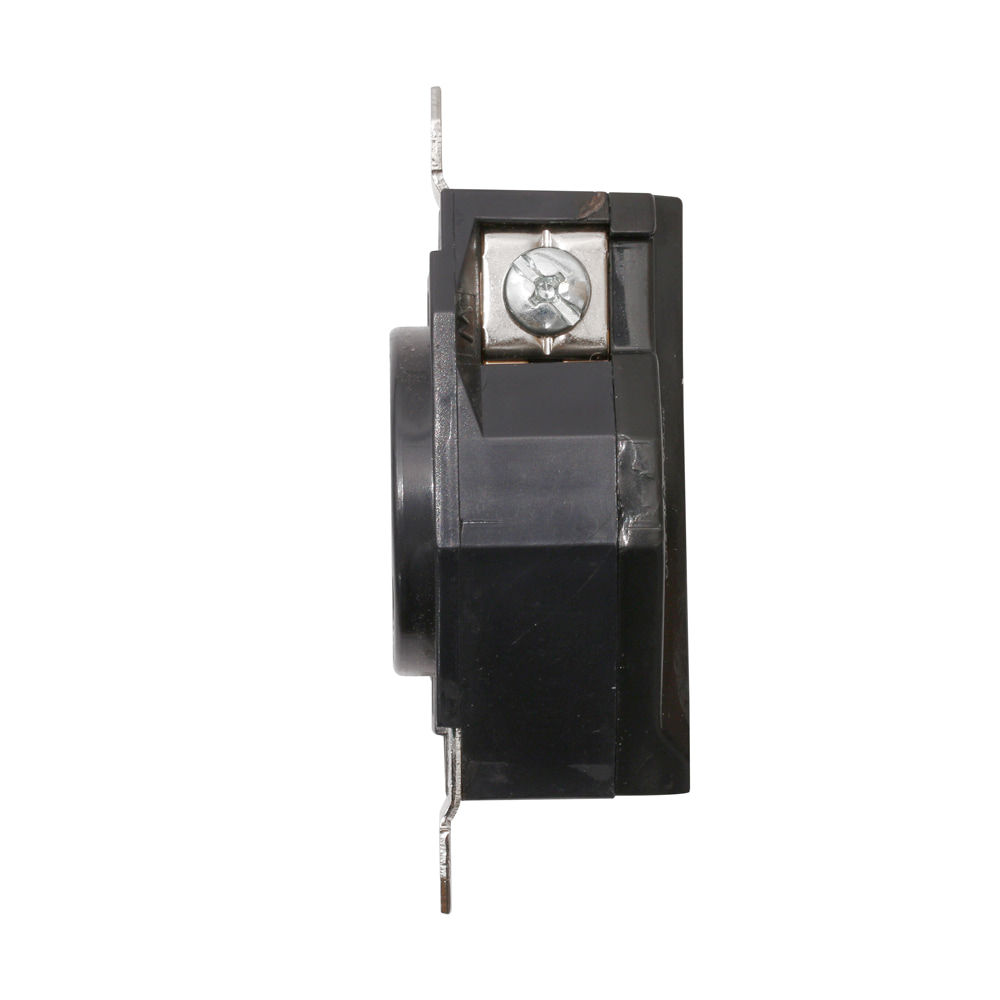

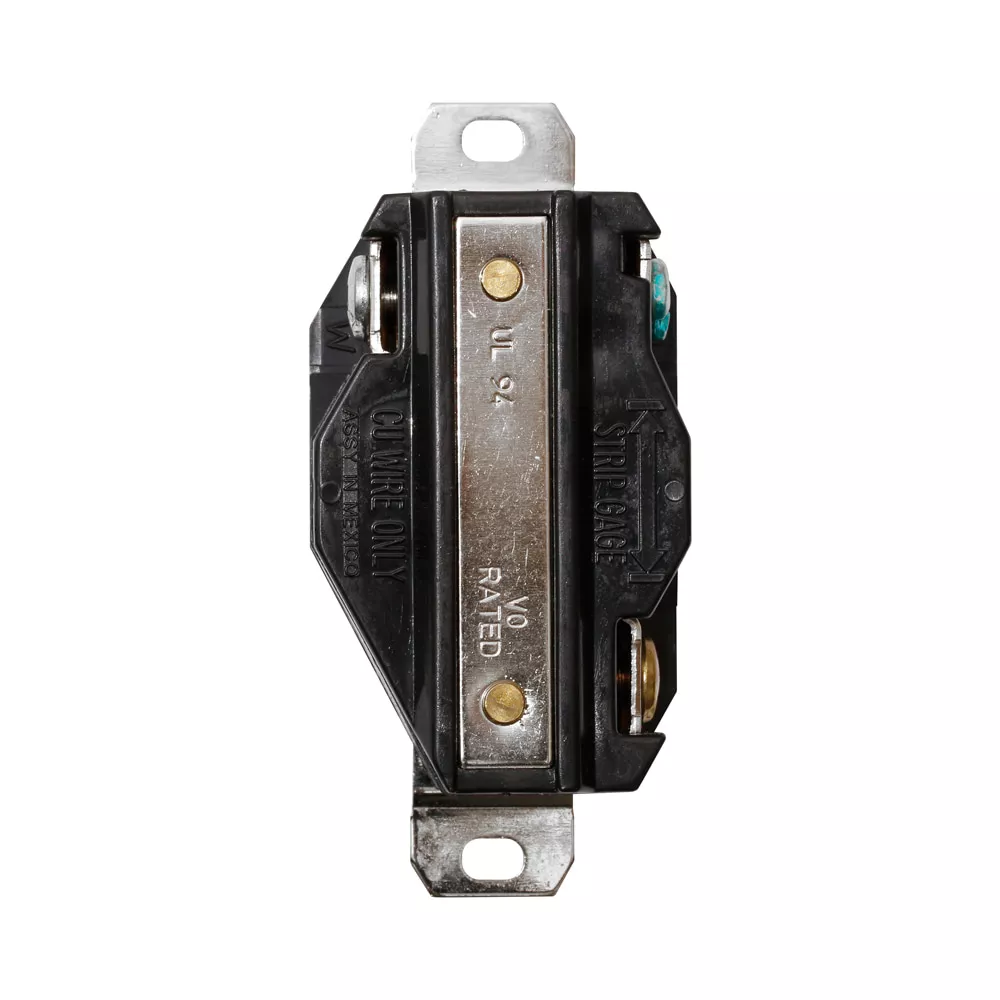

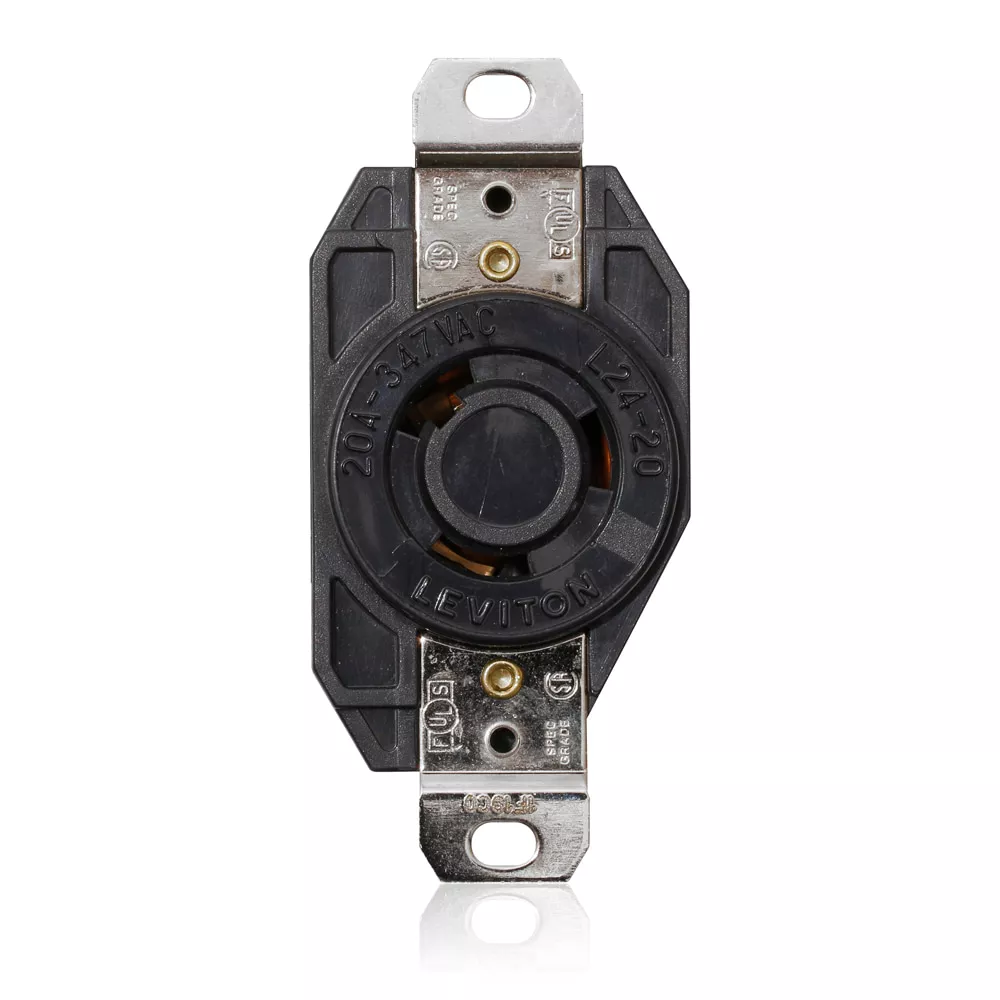

Flush Mounting Locking Receptacle, 20 Amp, 347 Volt, Industrial Grade

3720

20 Amp, 347 Volt, NEMA L24-20R, 2P, 3W, Flush Mounting Locking Receptacle, Industrial Grade, Grounding - Black

For Canada Only

Leviton’s Industrial Grade Locking Devices are built to provide unparalleled quality and superior performance in the most severe industrial settings. Leviton combines the best materials available with superior production standards to produce a broad selection of Locking Devices of unmatched flexibility and dependability.

UPC Code: 078477880425
Country of Origin : Mexico
NEMA L24-20R

Product Information

  • Electrical Specifications

    Current Limiting : Full Rated Current

    Dielectric Voltage : Withstands 2000V per UL498

    Grounding : Grounding

    Pole : 2

    Screw Terminal Torque : 14-18 in-lbs

    Temperature Rise : Max 30C after 250 cycles OL at 200 percent rated current

    Torque Range : 14-16 in-lbs

    Voltage : 347 VAC

    Wire : 3

  • Environmental Specifications

    Flammability : Rated V-0 per UL 94

    Operating Temperature : -40°C to 60°C

  • Material Specifications

    Base Material : Nylon

    Body Material : Nylon

    Cover Material : Valox 357

    Face Material : Nylon

    Line Contacts : Brass

    Strap Material : Nickel-Plated Brass

    Terminal Clamps : Nickel-Plated Brass

    Terminal Screws : Chromated Brass

  • Mechanical Specifications

    Product ID : Ratings and NEMA I.D. permanently marked on device

    Terminal Accom. : 14-8 AWG

    Terminal ID : Marked on Device

    Termination : Back & Side

  • Product Features

    Brand : V-0-Max

    Color : Black

    Device Type : Locking Receptacle

    NEMA : L24-20R

  • Standards and Certifications

    ANSI : C-73

    CSA : C22.2 No. 42

    NEMA : WD-6

    NOM : 057

    UL : 498

  • Warranty

    Warranty : Limited Lifetime Warranty
