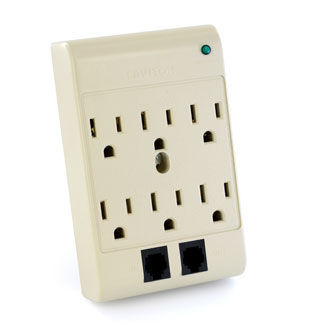

15 Amp, 120 Volt, 6-Outlet Plug-In Surge Adapter

3500-PT

120 Volt 15 Amp Surge Protected, 6-Outlet Plug-In Surge Adapter W/2 RJ11, All Purpose Duty, 540 Joules, 400V Impulse Clamping, Plastic Housing - BEIGE

Leviton’s Surge Protection Devices can be used individually or as part of a coordinated application strategy, to protect sensitive electronic equipment, in industrial, commercial and residential locations, from the stress and degradation inflicted by voltage transients. Leviton Surge Protection Devices are compliant with UL 1449 Standards. Leviton’s outstanding Surge Protection Devices divert damaging voltage transients, or surges, away from electronic equipment. Transients are diverted away from sensitive micro circuitry, providing protection against catastrophic failure, costly downtime and data disruptions.

UPC Code: 078477827994
Country of Origin : China
NEMA 5-15R

Product Information

  • Electrical Specifications

    Amperage : 15 A

    Enclosure Material : ABS Molded Plastic

    Frequency : 50/60Hz

    Surge Technology : MOV

    Voltage : 120 VAC

  • Material Specifications

    Enclosure Material : ABS Molded Plastic

    Joules Rating : 540.0

    MCOV : 130V

    Maximum Surge Current : 36kA

    Noise Filtering : -10 to -45dB (@50KHz to 100MHz)

    VPR : L-N:600V, L-G:700V, N-G:700V

  • Performance Data

    Alarm : None

    Amperage : 15 A

    Application : Micro Processor Based Equipment

    Circuitry : MOV-Based Suppression

    Color : Beige

    Diagnostics : None

    Duty : All Purpose Duty

    Housing Material : Plastic

    Joules Rating : 540.0

    MCOV : 130V

    Max Surge Current kA L-N : 12kA

    Maximum Surge Current : 36kA

    NEMA : 5-15R

    Noise Filtering : -10 to -45dB (@50KHz to 100MHz)

    Noise Rejection : 40 dB at 150kHz-20MHz

    Standards and Certifications : UL1449 / CSA / ANSI/IEEE Cat AB

    Type : 6-Outlet Surge Adapter W/2 RJ11

    UL1449 Impulse 6kV/500A L-N : 400V

    VPR : L-N:600V, L-G:700V, N-G:700V

    Voltage : 120 VAC

  • Product Features

    Alarm : None

    Amperage : 15 A

    Application : Micro Processor Based Equipment

    Circuitry : MOV-Based Suppression

    Color : Beige

    Device Type : 6-Plex Receptacle

    Diagnostics : None

    Duty : All Purpose Duty

    Frequency : 50/60Hz

    Housing Material : Plastic

    Max Surge Current kA L-N : 12kA

    NEMA : 5-15R

    Noise Rejection : 40 dB at 150kHz-20MHz

    Standards and Certifications : UL1449 / CSA / ANSI/IEEE Cat AB

    Surge Technology : MOV

    Type : 6-Outlet Surge Adapter W/2 RJ11

    UL1449 Impulse 6kV/500A L-N : 400V

    Voltage : 120 VAC

  • Standards and Certifications

    ANSI/IEEE Category A : C-62.41 & 62.45

    Agency Certifications : UL 1449 3rd Edition Listed Type 3

  • Warranty

    Warranty : 5-Year Limited
