26725-423

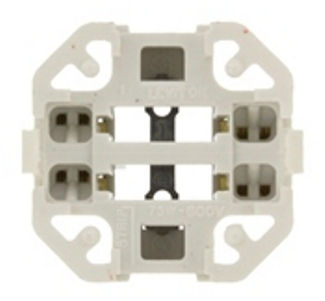

Vertical snap-in (bottom) fluorescent lampholder for 26/32 watt lamps with G24Q-3/GX24Q-3 base, 75w-600v. UL listed and CSA certified. Packaged 500 carton bulk. Base marked with orange ink.

UPC Code: 078477006092
Country of Origin : Mexico
RoHS Compliant: Yes – Click Here

Product Information

  • Mechanical Specifications

    Availability : OEM BULK ONLY

    Body Material : Thermoplastic

    Mounting Orientation : Vertical

    Mounting Type : Bottom Snap-In

    Panel Thickness : 18-20 Ga. Panel

    Retainer Clip : Stainless Steel

    Termination : Quick-Connect 18AWG Solid or Str. Tinned

  • Electrical Specifications

    Body Style : Standard Body

    Color : White

    Color Code : Orange

    Lamp Wattage : 26 W/32 W

    Mounting Type : Bottom Snap-In

    Panel Thickness : 18-20 Ga. Panel

    Termination : Quick-Connect 18AWG Solid or Str. Tinned

    Wire Strip Length : 3/8 Inch

    Wiring Ports : 2

  • Standards and Certifications

    CSA Certified : File LR-1863

    NOM : 057

    UL Listed : File E5833

  • Product Features

    Availability : OEM BULK ONLY

    Color Code : Orange

    Lamp Base : G24q-3, GX24q-3

    Lamp Contacts : 4-Pin

    Lamp Wattage : 26 W/32 W

    Lampholder Type : Compact

    Light Type : Fluorescent

    Mounting Orientation : Vertical

    Mounting Type : Bottom Snap-In

    Panel Thickness : 18-20 Ga. Panel

    Rated Wattage : 75W

    Standards and Certifications : UL/CSA/NOM

    Style Name : Standard Body

    Termination : Quick-Connect 18AWG Solid or Str. Tinned

    Voltage : 600 Volt

    Warranty : 1 Year Limited
