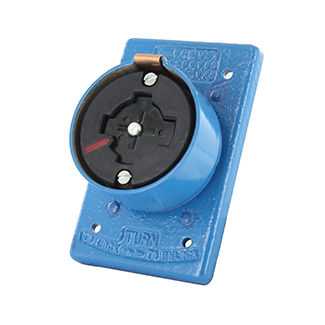

30 Amp, 600 Volt, Single Receptacle w/ Fiberglass Reinforced
25403
30 Amp-600 VAC / 20 Amp-250 Volt DC 4-Pole 5-Wire Grounding. Single Receptacle w/ Fiberglass Reinforced Nylon Interior w/ Cast Iron and Steel Shell. Fits FS or FD Boxes
Leviton’s industry leading locking devices, such as our Power Interrupting line of industrial and hospital grade plugs, connectors and flush receptacles offer superior performance, long lasting reliability and other features that are backed by a 10-year limited warranty.
Product Information
Electrical Specifications
Amperage : 30/20 A
Current Limiting : Full Rated Current
Dielectric Voltage : Withstands 1500V per UL498
Grounding : Grounding
Pole : 4
Temperature Rise : Max 30C after 100 cycles OL at 150 percent rated current
Voltage : 250 VDC/600 VAC
Wire : 5
Environmental Specifications
Environment : Dry
Flammability : Rated V-0 per UL 94
Operating Temperature : -40°C to 105°C
Material Specifications
Body Material : Phenolic
Color : Black
Grounding Screw : Brass
Interior Material : Phenolic
Line Contacts : 0.030" Thick Bronze
Receptacle Contact Support : 0.020" Thick Bronze
Strap Material : Brass
Terminal Screws : Brass
Mechanical Specifications
Product ID : Ratings permanently marked on device
Terminal Accom. : 10-14 AWG
Termination : Back & Side
Product Features
Color : Black
Feature : Power Interrupting
Standards and Certifications
CSA : Certified
UL : 498
cULus : Listed
