23653-WWP

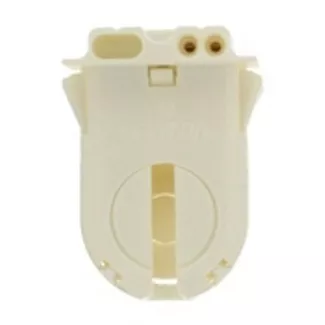

Fluorescent lampholder, medium bi-pin, 660w-600v, turn type with lamp lock, wide wings for snap in or slide on mount, body marked with UL and CSA, without locator post, with internal shunt, cover has "S" molded on back. Packaged 1/polybag, 5/carton.
Product Information
Mechanical Specifications
Contact Type : Lamp-Lock
Mounting Type : Snap-In or Slide-On
Panel Thickness : 22-25 Ga. Panel
Rated Wattage : 660W
Termination : Quickwire 18AWG Solid
Voltage : 600 Volt
Wire Strip Length : 3/8 Inch
Product Features
Availability : Distribution
Body Material : Thermoplastic
Color : White
Contact Material : Copper-Alloy
Contact Type : Lamp-Lock
Feature : Internal Shunt
Lamp Base : Medium
Lamp Contacts : Bi-Pin
Lamp Type : T8 - T12
Lampholder Type : Linear
Light Type : Fluorescent
Mounting Type : Snap-In or Slide-On
Notes : With Panel Locator Post
Panel Thickness : 22-25 Ga. Panel
Rated Wattage : 660W
Screw : Panel Locator Post
Standards and Certifications : UL/CSA/NOM
Style Name : Low Profile
Termination : Quickwire 18AWG Solid
Warranty : 1 Year Limited
Standards and Certifications
CSA Certified : File LR-1863
NOM Certified : 057
UL Listed : File E5833
VDE : Certified to IEC
