19D24-B

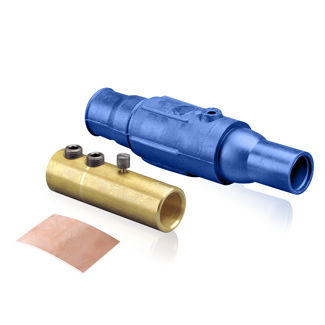

19 Series Cam-Type Female Detachable Plug, Industrial Grade, Double Set Screw Termination, Ball Nose, Cable Range-350-500MCM, 690 Amp - BLUE

The 19 Series Ball Nose connectors and panel receptacles are insulated for water tightness and safety. They allow you to quickly connect or disconnect equipment. They have become the industry standard for multiple operator stations, distribution panels, stress relieving and numerous other applications.

UPC Code: 07847799543
Country of Origin : United States

Product Information

  • Mechanical Specifications

    Cable Range : 350-500MCM

    Connection Type : Double Set Screw

    Gender : Female

  • Product Features

    Color : Blue

    Contact Cat. No. : 19D24-C

    Insulator Cat. No. : 19SDF-B

  • Electrical Specifications

    Max. Amperage : 690 Amp

    Max. Voltage : 600 Volt

  • Material Specifications

    Contact Material : Brass

    Sleeve Material : Santroprene TPV

    Strain Relief : Copper Wire
