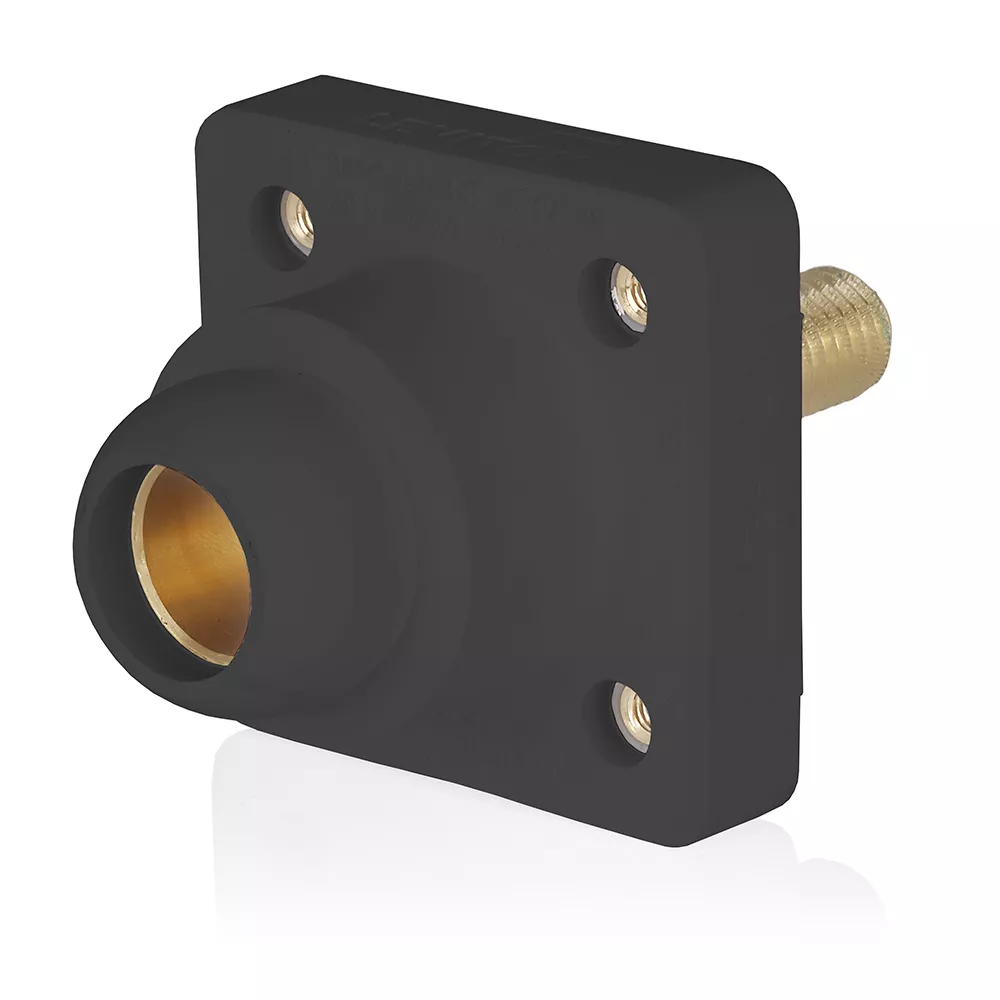

Female Receptacle, 90-Degree, #2 - 4/0 AWG, Threaded Stud Termination, Self-Clinching Nuts
18R26-1E
18 Series Single Pole Cam Type Female Panel Receptacle, Ball Nose, 1.125" Threaded Stud Termination, 90 Degrees, Cable Range #2 - 4/0, 400 Amp Max, Mounting Plate with Self-Clinching Nuts, Black
Leviton’s Rhino-Hide Single Pole Cam-Type Connectors supply temporary electrical power for both indoor and outdoor applications. These devices are designed for easy assembly and disassembly, without special tools.
- Single or double set screw termination
- NEMA 3R rated for outdoor use when mated
- UL: 1691, 508 – 35k A / 600V Short Circuit Current Rating
- Color-coding provides fast and easy phase identification
- Common applications: entertainment, oil and gas, mining operations, power distribution, construction sites, and other temporary power applications
Color: Black
Product Information
Product Features
Color : Black
Series : 18 Series
Feature : PEM/Self-Clinching Nuts
Material Specifications
Contact : Brass
Insulators : Santoprene
Warranty
Warranty : 2-Year Limited
Electrical Specifications
Gender : Male
Cable Size Range : #2-4/0
Connection Type : Threaded Stud
Termination Type : Ball-Nose
Standards and Certifications
NEMA Rating : Type 3R
UL : 1691
CSA Standard : 1691
Electrical Specifications
Max. Amperage : 400 Amp
Max. Voltage : 600 Volt
SCCR : 35kA
