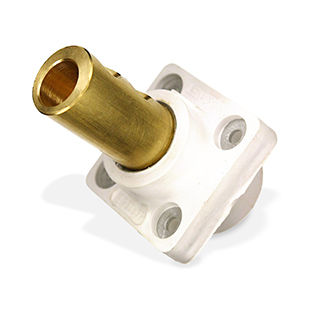

18R23-W

18 Series Commercial Grade Male Panel Receptacle, Cam-Type, 90-Degree, Double Set Screw, Ball Nose, Cable Size- 1/0 to 4/0 AWG, 600 Volt, 400 Amp - WHITE

The 18 Series Ball Nose pin and sleeve type plugs, receptacles and connectors are used by the broadcast industry in Canada, as well as the welding industry in the United States.

UPC Code: 07847736048
Country of Origin : Please Contact Customer Service

Product Information

  • Material Specifications

    Contact Material : Brass

    Sleeve Material : Santroprene TPV

  • Standards and Certifications

    CSA Certified : File 152105

    UL Listed : File E-13399

  • Product Features

    Color : White

  • Electrical Specifications

    Max. Amperage : 400 Amp

    Max. Voltage : 600 Volt

  • Mechanical Specifications

    Cable Range : 1/0-4/0 AWG

    Connection Type : Double Set Screw

    Gender : Male
