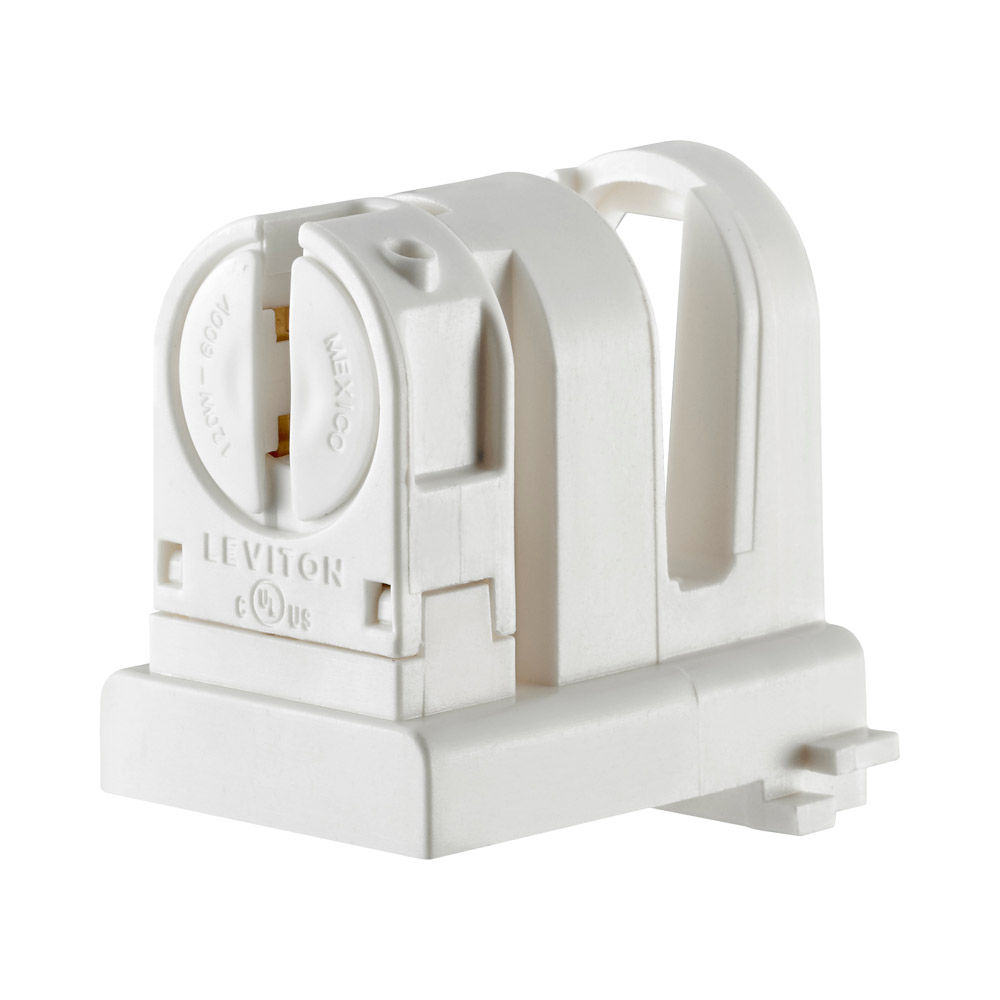

13654-EXL
Medium to Miniature Base, T5 Bi-Pin, Standard Fluorescent Lampholder, Long T-8 to T-5 Adapter, Slide-On, Lamp-Lock, , Quickwire 18AWG Solid or Str Tinned - White
Product Information
Mechanical Specifications
Contact Type : Lamp-Lock
Mounting Type : Slide-On
Panel Thickness : 20 Ga. Panel
Rated Wattage : 660W
Termination : Quickwire 18AWG Solid or Str. Tinned
Voltage : 600 Volt
Wire Strip Length : 3/8 Inch
Product Features
Availability : OEM Only
Body Material : Thermoplastic
Color : White
Contact Material : Copper-Alloy
Contact Type : Lamp-Lock
Lamp Base : Medium to Miniature
Lamp Contacts : Bi-Pin
Lamp Type : T5
Lampholder Type : Linear
Light Type : Fluorescent
Mounting Type : Slide-On
Panel Thickness : 20 Ga. Panel
Rated Wattage : 660W
Standards and Certifications : UL/CSA/NOM
Style Name : Long T-8 to T-5 Adapter
Termination : Quickwire 18AWG Solid or Str. Tinned
Warranty : 1 Year Limited
Standards and Certifications
CSA Certified : File LR-1863
NOM Certified : 057
UL Listed : File E5833
- Simple, cost-effective solution enables OEM's to incorporate miniature bi-pin T-5 lamps into existing T-8 fixture design
- No change in socket bar tooling required
- Fits existing slide-on T-8 lampholder cutouts and compensates for variations in T-5 lamp lengths
- 4-position, positive-stop lamp-lock socket makes it simple for end users to relamp in service
- Long and Short lengths available
- Available shunted and non-shunted
