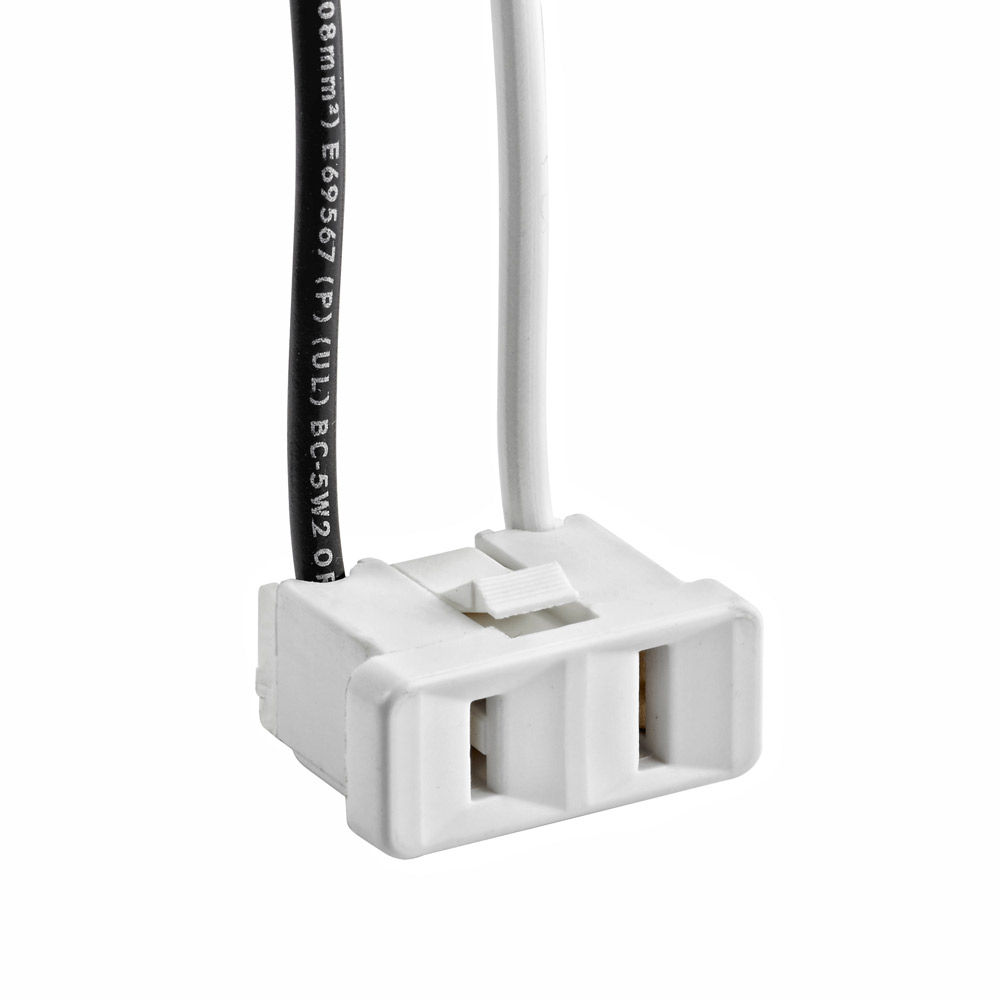

Snap In Receptacle, Straight Blade, Non-Grounding Leads, 15A, 125V, NEMA 1-15R, 2P, 2W

1306-W

15 Amp, 125 Volt, NEMA 1-15R, 2P, 2W, Snap-In Receptacle, Straight Blade, Non-Grounding, Leads 14GA 6 Inch Long Wired - White

UPC Code: 078477168509
Country of Origin : Mexico
RoHS Compliant: Yes – Click Here
NEMA 1-15R

Product Information

  • Standards and Certifications

    CSA Certified : LR-2781

    NOM : 057

    UL Listed : File E13399

    Warranty : 2-Year Limited

  • Mechanical Specifications

    Amperage : 15 A

    Color : White

    NEMA : 1-15R

    Panel Opening : .97 x .52

    Panel Thickness : .028 - .060

    Termination : Leads 14GA 6 Inch Long

    Voltage : 125 VAC

  • Environmental Specifications

    Body Material : Thermoplastic

    Clip Material : Steel Corrosion-Resistant Finish

    Color : White

    Face Material : Thermoplastic

    Flammability : Rated V-2 per UL 94

    Operating Temperature : -40°C to 60°C

  • Electrical Specifications

    Amperage : 15 A

    Flammability : Rated V-2 per UL 94

    Grounding : Non-Grounding

    Operating Temperature : -40°C to 60°C

    Pole : 2

    Voltage : 125 VAC

    Wire : 2

  • Material Specifications

    Body Material : Thermoplastic

    Clip Material : Steel Corrosion-Resistant Finish

    Color : White

    Face Material : Thermoplastic

    Panel Opening : .97 x .52

    Panel Thickness : .028 - .060

    Termination : Leads 14GA 6 Inch Long

  • Product Features

    Amperage : 15 A

    Device Type : Snap-In

    Grounding : Non-Grounding

    NEMA : 1-15R

    Pole : 2

    Type : Snap-In

    Voltage : 125 VAC

    Wire : 2
