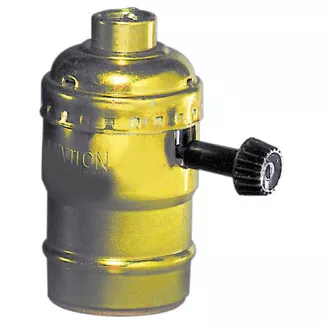

Lampholder, Incandescent, Medium Base, Aluminum Shell, Removable Turn Knob, Single Circuit, Brass

10083-16

Medium Base Complete, Aluminum Shell Incandescent Lampholder, Removeable Turn Knob, Single Circuit, 1/8 IPS Tapped Bushing w/Set Screw, - Brass

Leviton offers a complete selection of incandescent, fluorescent, and specialty lampholders. Our incandescent and fluorescent styles are available in a wide range of ratings and materials to suit any residential and commercial need.

UPC Code: 078477072752
Country of Origin : Mexico

Product Information

  • Material Specifications

    Circuit : Single Circuit

    Finish : Polished Gilt

    Shell Material : Aluminum

    Termination : 2 Terminal Screws

    Voltage : 250 Volt

    Wattage Rating : 250W

  • Mechanical Specifications

    Construction : Complete

    Lamp Socket Base : Medium

    Mandrel Thread : 4-36

    Mounting Type : Pipe Mount

    Operator Type : Removable Turn Knob

    Pipe Mount : 1/8 IPS Tapped Bushing w/Set Screw

    Sequence : ON-OFF

    Set Screw Thread : 8-32

    Style Name : Electrolier

    Termination : 2 Terminal Screws

  • Product Features

    Availability : Distribution

    Circuit : Single Circuit

    Color : Brass

    Construction : Complete

    Finish : Polished Gilt

    Interior Material : Phenolic

    Knob Material : Thermoplastic

    Lamp Base : Medium

    Lamp Socket Base : Medium

    Lampholder Type : Shell Lampholders

    Light Type : Incandescent

    Operator Type : Removable Turn Knob

    Pipe Mount : 1/8 IPS Tapped Bushing w/Set Screw

    Screw Shell Material : Aluminum

    Sequence : ON-OFF

    Shell Material : Aluminum

    Standards and Certifications : UL/CSA

    Style Name : Electrolier

    Terminal Screws : Brass

    Termination : 2 Terminal Screws

    Voltage : 250 Volt

    Wattage Rating : 250W

  • Standards and Certifications

    CSA Certified : File LR-1863

    UL Listed : File E3810
