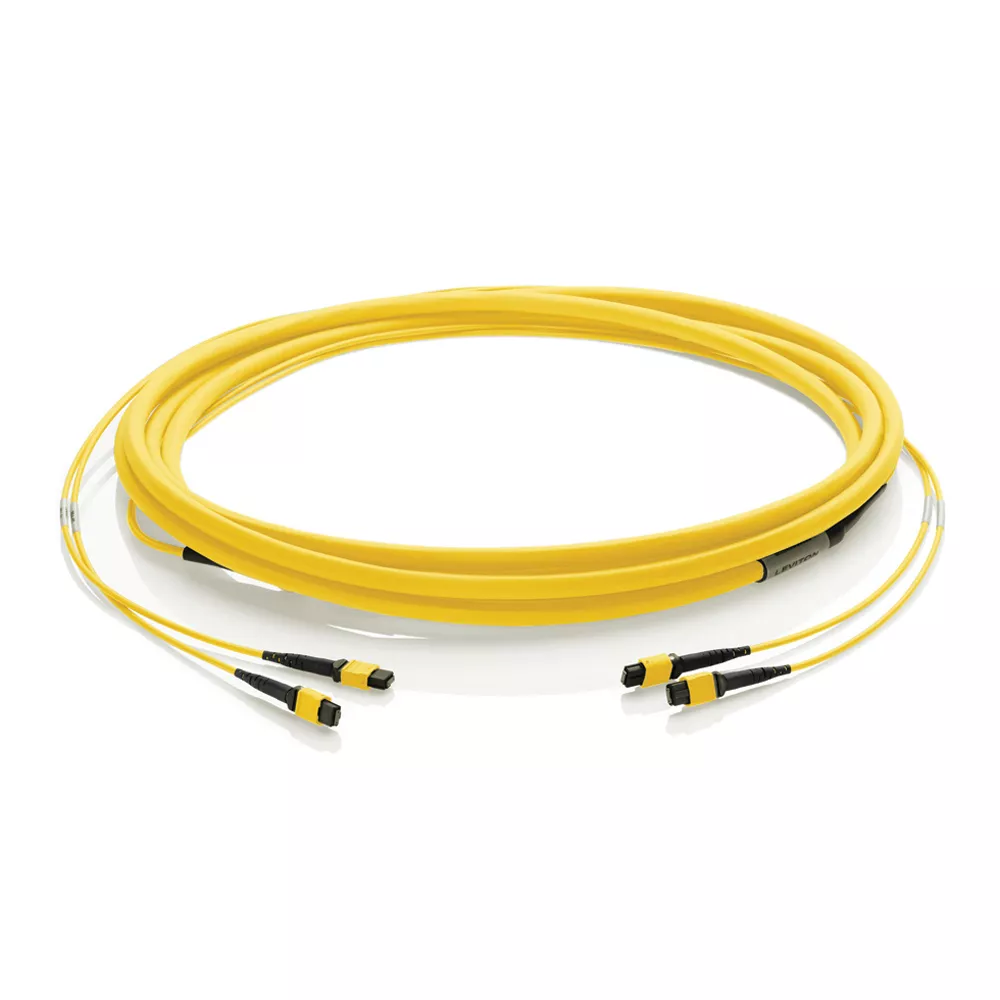

OPT-X™ Engage Low Loss Fiber Trunks – LSZH Euroclass CPR
ENTER-TRK-CPR
Factory-terminated and tested fiber trunk cables connect central patching locations to zones or pods. Available terminated with both modular (MPO) and discrete connectors, these trunks are custom built in any length to meet specific applications. An optional pulling eye, installed on the first end, protects fiber connectors on 8- through 144-fiber trunk cables. The pulling eye completely covers the breakout length, transferring any pulling force from the assembly to the pulling-eye sleeve. The trunks are pre-tested with test documentation provided with each assembly.
Product Information
Product Features
Assembly Type : Fiber Trunks
Connector : MTP-MTP,MTP-LC,LC-LC,SC-LC,SC-SC,LC/APC-LC/APC,SC/APC-SC/APC
Family : Opt-X Engage
Fiber Type : OM3,OM4,OM5,OS2
Length : 10 meters,Custom
- Low-loss 8- or 12-fiber MPO/MTP® and discrete connectors for network design flexibility
- Pre-terminated fiber eliminates the need for complicated and craft-sensitive field terminations and splices
- Every fiber component is factory terminated and pre-tested using automated procedures to ensure product quality
- All discrete connectors (LC, SC) are heat cured and use ceramic ferrules and sleeves for consistent performance
- Connector boots are color-coded for easy identification
- Highest performing LSZH Euroclass B2ca, s1a, d1, a1 to meet the requirements of the Construction Product Regulation (CPR)
- Available in 8, 12, 24, 48, 72, 96, 144, or custom fiber counts
- Fiber types include OS2, OM3, OM4, and OM5 high performance fiber
- Standard breakout lengths can be staggered to ease installation
