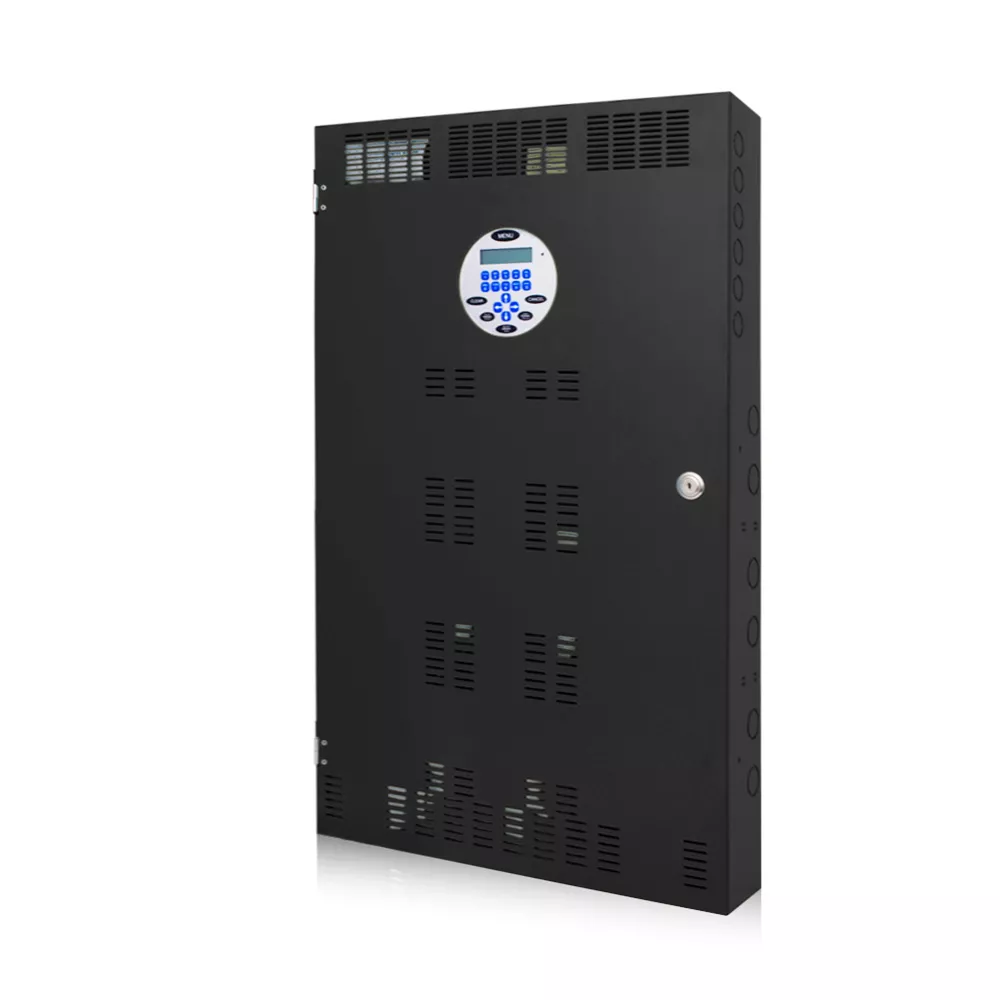

EZ-MAX Plus 24 Circuit DMX Lighting Control Relay Panel, 24 1-Pole Relays 120V/277V/347V

R24DD-L24

DISCONTINUED

EZ-MAX Plus 24 Circuit DMX Relay Panel, 120, 277V and 347V input, provided with (24) 30A, 1-pole relays

Leviton DMX Relay Control Panels are specifically designed to support the switching power needs of non-dim, worklight and power for LED fixtures. The Leviton DMX Relay Control Panels are specifically designed for theaters and other entertainment venues as they transition to digitally controlled loads to turn power on and off to these devices. The DMX Relay Control Panels use DMX control protocols for this purpose to determine which relays are ON or OFF.

Do you have any questions about EZ-MAX Plus Relay Panel Lighting Control Systems?

Contact us to learn more.

UPC Code: 078477828311

Country of Origin : Mexico

Product Information

Updated

Product Specification and Data Sheet

View

Updated

Electrical Specifications
Voltage : 120/277/347 VAC
Voltage Type : Line Voltage
Mechanical Specifications
Mounting Type : Flush or Surface Mount
Product Features
Circuits/Channels : 24
Product Line : DMX
Product Type : Relay Panel
Protocol : DMX

Relay cards are rated for all light sources and motors
Relay cards are individually replaceable
Single pole and two pole relay cards fit in the same location—same density regardless
Normal or emergency panel capability
Panel is pre-wired and tested
Standard transformer has inputs for:
- Input power (domestic): 120V, 277V and 347V
- Input power (foreign): 230V +/- 15%
Panels may be surface or recess mounted
2 year warranty on panels
Integrated Astronomical Time Clock scheduler
