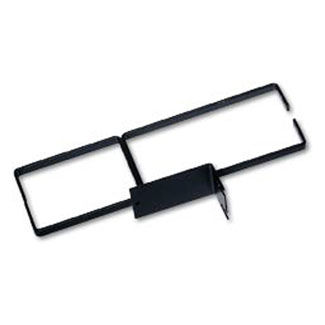

3" Vertical Manager Ring (4-pair cable capacity: 180 rear, 250 front)

49260-MR3

3" wide, vertical distribution ring for equipment rack cords/cables. Mounts on side of rack, providing two separate distribution rings for front and rear cable routing. Optional interbay tie bracket (49261- BKT).

UPC Code: 078477848487
Country of Origin : United States
RoHS Compliant: Yes – Click Here

Product Information

  • Product Features

    Type : Rings

  • Rings have edges with a radius to protect cable from nicks or wear

INSTALLATION NOTES

  • Temporarily install two rings, at top and bottom, between racks before securing racks to the floor.
  • Adjust ring locations to meet as-built arrangement of equipment, patch panels, and horizontal wire manager panels.
  • Attach one interbay tie bracket 49261-BKT to secure each ring to adjacent rack.
