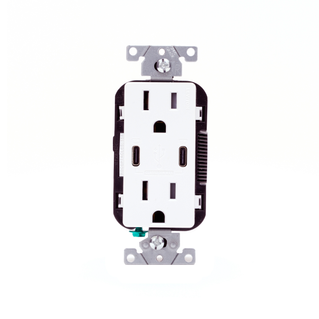

30W (6A) USB Dual Type-C/C Wall Outlet Charger with 15A Tamper-Resistant Outlet

T5637-W

15 Amp, 125 Volt, Decora Tamper-Resistant Outlet. NEMA 5-15R, 30W (6 Amps), Dual Type-C/C USB Chargers, Grounding, Side Wired & Back Wired - White

SMART – Built-in smart chip recognizes the individual device’s charging requirements to optimize the charge (Does not provide Power Delivery. See Leviton T5636, T5635)
POWERFUL – Two high-powered charging ports deliver a combined total of 6A charging current and 30 watts of power
CONVENIENT – No more searching for charging adapters! Upgrade so you can charge electronics leaving the outlets free for additional power needs
THE FUTURE OF CHARGING – USB Type-C provides faster charging and is emerging as the standard port on many phones and tablets, such as iPhones^®, iPads^®, Samsung Galaxy^®, Samsung^® Tabs, Google^® Pixel and More
ENHANCED SAFETY – Built-in protection helps prevent the device from overheating and tamper-resistant outlets prevent unwanted objects from being inserted into the outlets
Wallplate sold separately

Color: White

Where to Buy

Add to Project List

Product Support

UPC Code: 078477000885

Country of Origin : China

NEMA 5-15R

Product Information

Updated

Electrical Specifications
Amperage : 15 A
Body Material : Thermoplastic
Color : White
Cover Material : Thermoplastic
Grounding : Grounding
Horsepower Rating : 15A-1/2 HP
Ratings : 15A-125V
Strap Material : Steel
Voltage : 125 VAC
Environmental Specifications
Flammability : Rated V-0 per UL 94
Operating Temperature : -10°C to 40°C
Product ID : Stamped on Strap
Terminal Accom. : 14-12 AWG
Terminal ID : Brass-Hot Black-Hot White-Neutral Green-Gnd
Termination : Back & Side
Torque Range : 14 – 18 in.-lbs
Material Specifications
Body Material : Thermoplastic
Color : White
Cover Material : Thermoplastic
Grade : Residential/Commercial Specification Grade
Strap Material : Steel
Mechanical Specifications
Listed : cCSAus
NOM : 057
Product ID : Stamped on Strap
Terminal Accom. : 14-12 AWG
Terminal ID : Brass-Hot Black-Hot White-Neutral Green-Gnd
Termination : Back & Side
Torque Range : 14 – 18 in.-lbs
Warranty : 2-Year Limited
Product Features
Amperage : 15 A
Brand : Decora
Color : White
Flammability : Rated V-0 per UL 94
Grade : Residential/Commercial Specification Grade
NEMA : 5-15R
Operating Temperature : -10°C to 40°C
Product Type : Outlet/USB Combo
Type : Type C/C with Duplex Receptacle
Voltage : 125 VAC
Wallplate : Not Included
Standards & Certifications
FCC Part 15 : Class B
Listed : cCSAus
NOM : 057
UL 1310 : Yes
UL 498 : Yes
Warranty : 2-Year Limited

Charges most Type-C devices as well as Type A devices (adapter required)
Adapter-free charging of Type-C devices for a sleek and uncluttered appearance
No data transfer capability
6A USB Charger
Two charging ports with 15W maximum of charging per port
Smart chip recognizes and optimizes the charging requirements of individual devices
Internal thermos regulator prevents the electronics from overheating
Tested to withstand over 10,000 insertions.
Compatible with USB 3.1, 3.0, 2.0, 1.1 devices
Tamper-resistant receptacles help prevent access by most non-rated/foreign objects
Fits in a standard wallbox, is compatible with standard wallplates and can be multi-ganged with other devices
Easy to install. Can replace existing outlets
Compatible with Decora® wallplates and Decora Plus™ screwless wallplates. Wallplate sold separately
Perfect for use in residential applications such as kitchens, bedrooms, and home offices and in commercial applications such as hotels, airports, restaurants and cafes, salons, office cubicles - and college dorm rooms

CA2621644
CA2624409
CA2677283
MX338817
US7355117
US7820909
US7868719
US8242362
US8944859
US9368982
US9496726

This list is provided for patent marking purposes only. A good faith effort is made to maintain the accuracy and completeness of this list. No legal inference should be drawn from the omission of a patent from this list.
