Decora Smart Fan Speed Controller, Wi-Fi 2nd Gen, Neutral Wire Required

D24SF-1BW

Decora Smart Fan Speed Controller, single pole, 3-way, or multi-location when used with Wired Switch or Dimmer Companions or Wire-Free Anywhere Dimmer or Switch Companions. For use with overhead ceiling paddle fans not to exceed 1.5A maximum load, neutral wire required – White.

BENEFITS

Don't worry about stale air – make your existing ceiling fan smart to circulate airflow and improve the wellness of your home
Never reach for the pull chain again –schedule when your ceiling fans run and at what speed, or use an auto-shutoff timer to turn them off automatically
Add multiple speed options – replace your existing on/off fan switch to add quiet 4-speed control of your ceiling fan (low, medium, high, max)
Control fans in high-up, hard-to-reach places –perfect for rooms with tall or vaulted ceilings
Use your voice to set your fan speed – works with Google Assistant, Amazon Alexa, and Apple Siri
Personalize your home – have your fan turn on to the speed you want every time, perfect for bedrooms, home offices, home gyms, and living areas

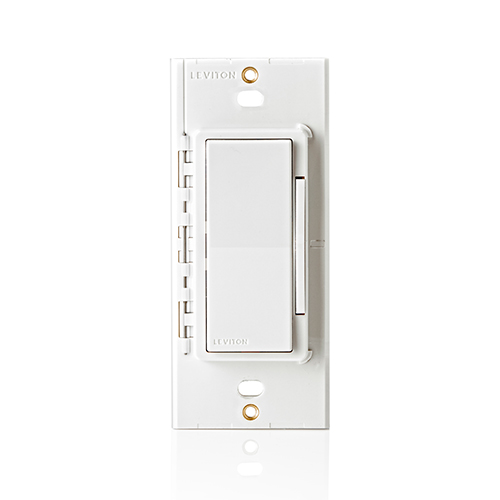

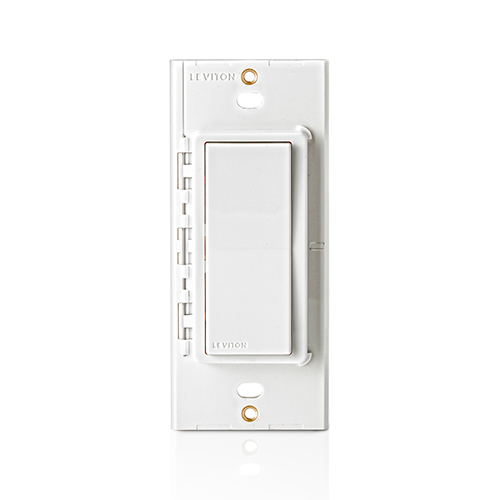

Control your fan from another wall location in your home without additional wiring – pairs with DAWDC or DAWSC Anywhere Dimmer or Switch Companions
Smarter energy savings – Use the My Leviton app to control the D24SF Fan Speed Controller with a Leviton D2MSD Motion Sensing Dimmer so your fan turns on when you enter the room and off when you leave

FEATURES

Quiet fan speed control – On/off control with four speed options including low, medium, high and max
Works with overhead ceiling fans – rated for up to 1.5A, ideal for pull-chain ceiling fans without electronic control
Well connected – Works with Alexa, Google Assistant, Apple Home, SmartThings, and IFTTT

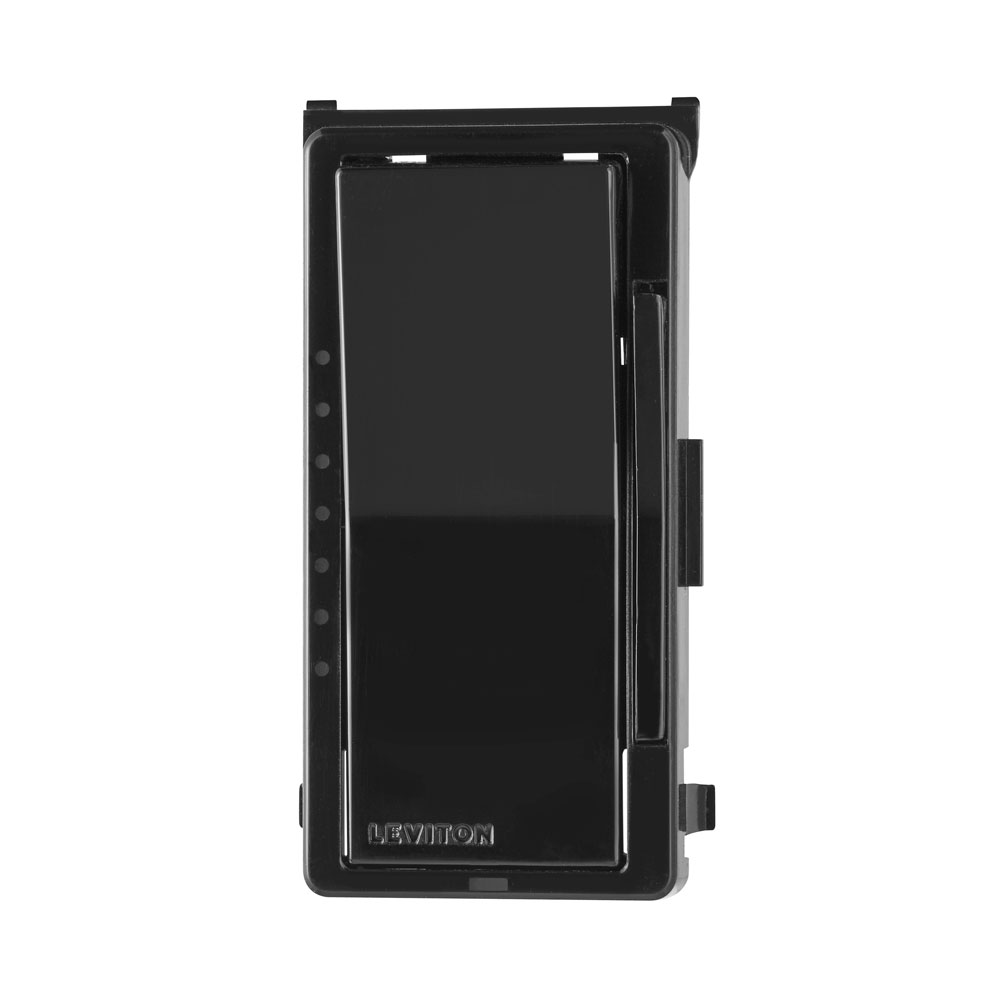

Match your style – it’s easy to change the color using DDKIT to update to Black, Grey, Light Almond, Ivory, or Brown.
Simple guided setup – works with the My Leviton app, create schedules, activities, scenes and more
Easy Install – replaces your existing switch; no hub, slim design, and included screwless wallplate make install a breeze
Know how fast the fan is going – LEDs on the device light up to show you the fan's current speed

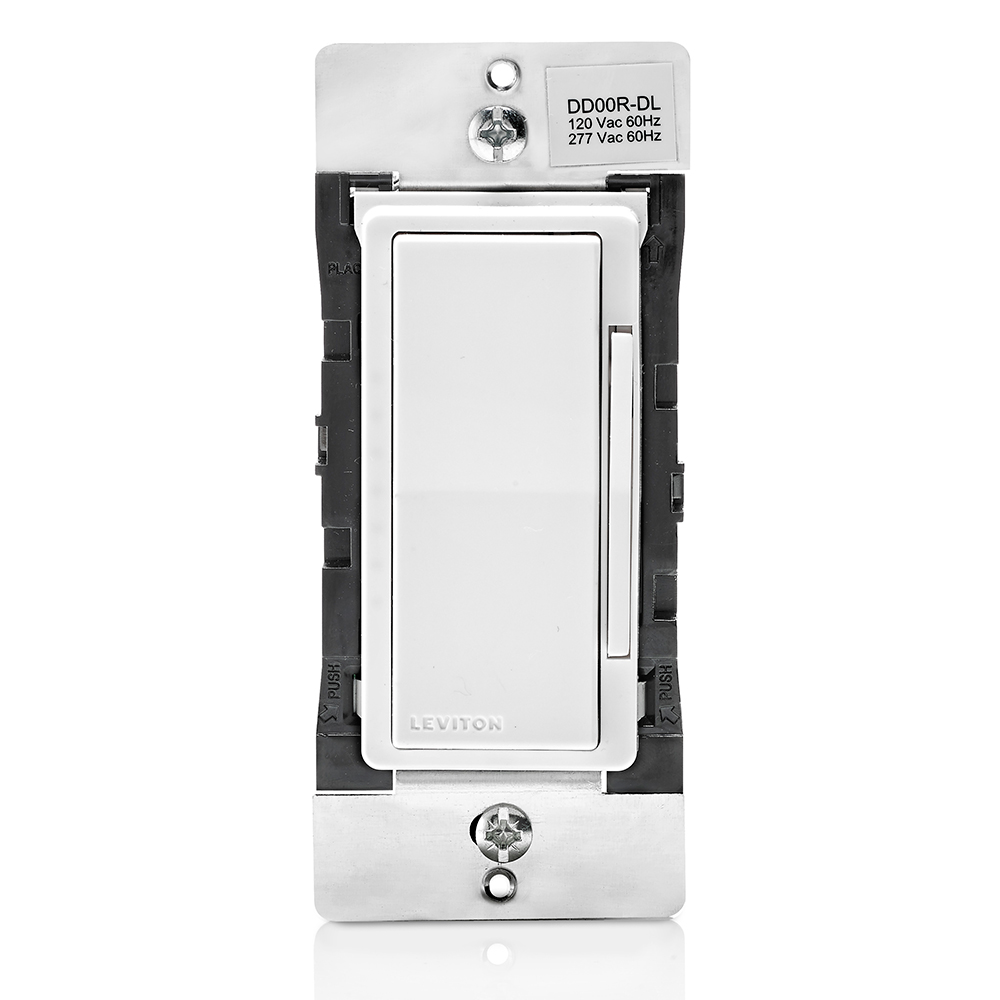

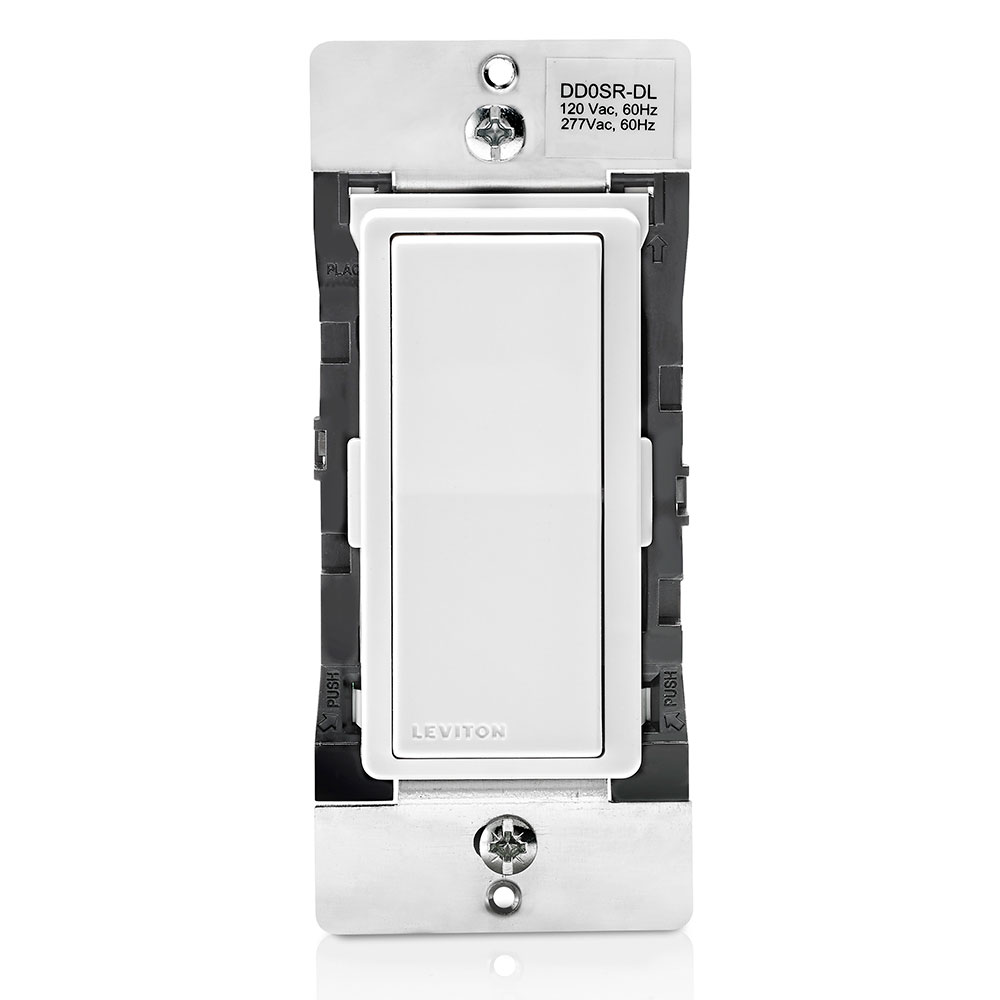

Single Pole or 3-Way – works with DD00R Wired Dimmer Companion, DD0SR Wired Switch Companion, DAWDC wire-free Anywhere Dimmer Companion, or DAWSC wire-free Anywhere Switch Companion

TECH SPECS

Requires 2.4 GHz Wi-Fi Network; No hub required with My Leviton app
Requires Neutral Wire
Rated for overhead paddle fans without electronic control up to 1.5A motor; not for use with exhaust type fans, lighting loads, or combined ceiling fan light kits

Where to Buy

Add to Project List

Product Support

UPC Code: 078477471432

Country of Origin : China

Product Information

Updated

Product Specification: Decora Smart™ Wi-Fi 2nd Gen Fan Speed Controller

View

Updated

Electrical Specifications
Load Rating : 1.5A Fan Motor
Neutral Required : Yes
Termination : Wire Leads
Voltage : 120 VAC
Environmental Specifications
Operating Temperature : 0°C to 40°C
Material Specifications
Color : White
Optional Color Change Kits Available : Yes, DDKIT in White, Ivory, Light Almond, Gray, Black and Brown
Strap Material : Metal
Product Features
Brand : Decora Smart Wi-Fi
Device Type : Fan Speed Controller
Grade : Residential
Hub Required : No
Standards & Certifications
Standards and Certifications : UL, FCC, CSA, NOM
Warranty
Warranty : 2-Year Limited

Quiet Fan Controller with 4‐forward fan speeds: max, high, medium, low, and off
Adjust the Fan Speed Controller using the My Leviton app, a schedule, by voice, or using the Apple Home app
Works with My Leviton, Amazon Alexa, Hey Google, HomeKit™/Siri, IFTTT, SmartThings™ and Schlage
Connects to Wi‐Fi; No hub or bridge required
Customization options including Auto‐Shutoff Timer, Pre‐Set Speed or Return to Last Speed, Min/Max Speed, Status/Locator and Speed Level LED configuration
Can be used in 3‐way or multi‐way applications when paired with DAWDC and DAWSC Wire‐Free Anywhere Companions or DD00R and DD0SR Wired Companions
Decora rocker with fan speed bar and vanishing indicator lights
Wire leads and a product depth of 1.31”
Requires a neutral wire for installation
Compatible with DDKIT color change kits in Ivory, Light Almond, Gray, Black, and Brown
Settings and schedules are stored within the device and schedules will run even during a temporary internet outage
Compatible with pull chain ceiling fans without electronic control, not to exceed 1.5A maximum load
Ideal for control of fans mounted on high ceilings
Not for use with exhaust type fans, lighting loads, or combined ceiling fan light kit

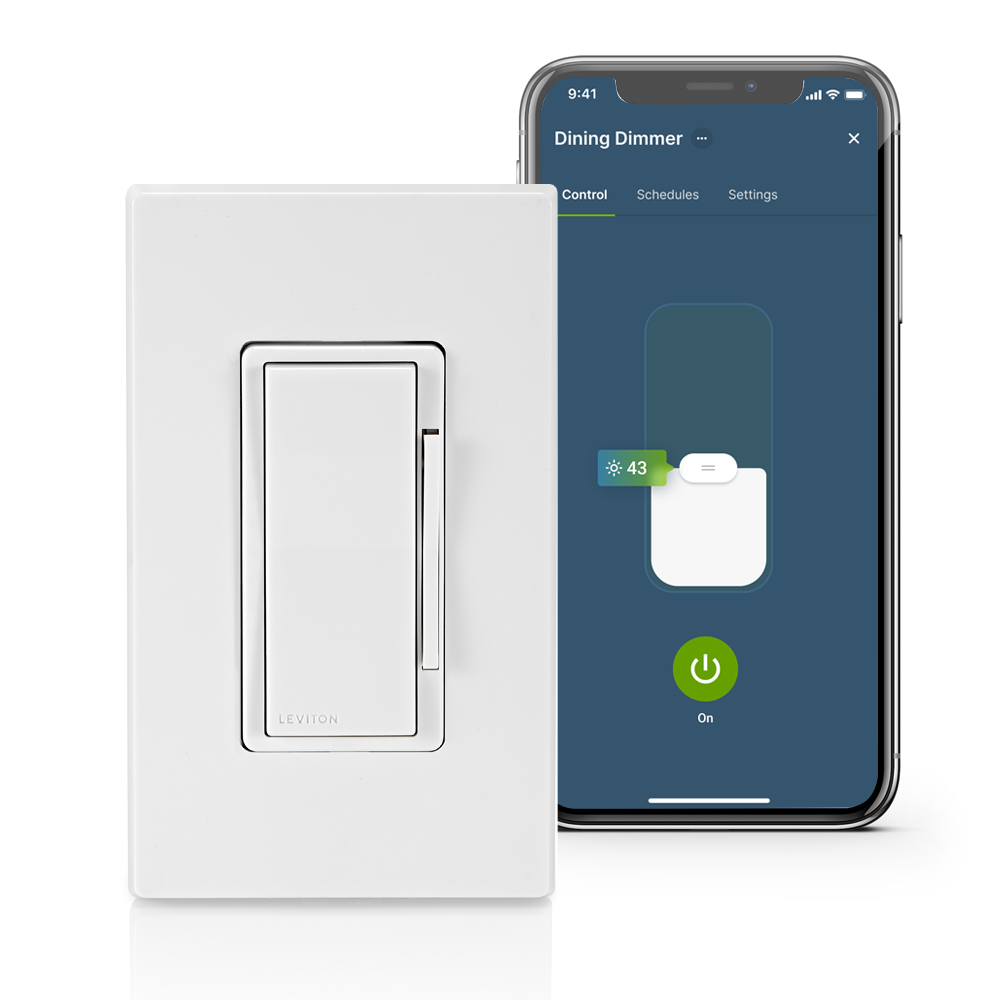

Ceiling fan light kits can be controlled separately by using the D26HD or DN6HD with MLWSB

CA2572204
CA2798964
MX321054
US10048653
US10062528
US7683755
US8664886
US9329607
US9398667
US9767973

This list is provided for patent marking purposes only. A good faith effort is made to maintain the accuracy and completeness of this list. No legal inference should be drawn from the omission of a patent from this list.
