Leviton Crafts Two High-Performance Networks for Renovated Legal Facility
The Challenge
An international legal and tax firm sought a network infrastructure partner for a project in Madrid, Spain. The site of this project was a very old, emblematic double building in the city undergoing a complex, structural renovation. As the renovation of the building proceeded, the network infrastructure partner they sought needed to create two high-availability networks – a corporate network and an AV network – with a high density of points per workstation, complex access, narrow ducts, and minimal space for IT racks.
- Rack spacing was very limited – the building had 25 floors, and only one rack could be used for every 2 or 3 floors.
- Deadlines were tight, and as such, the firm needed a partner that could commit to meeting strict delivery windows.
The Solution
Leviton’s first proposal was to create a design with a U/FTP zone solution because the cable had a small diameter. After analyzing the installation, the low availability of racks generated long distances at some network points, added to the end customer’s preference for UTP systems.

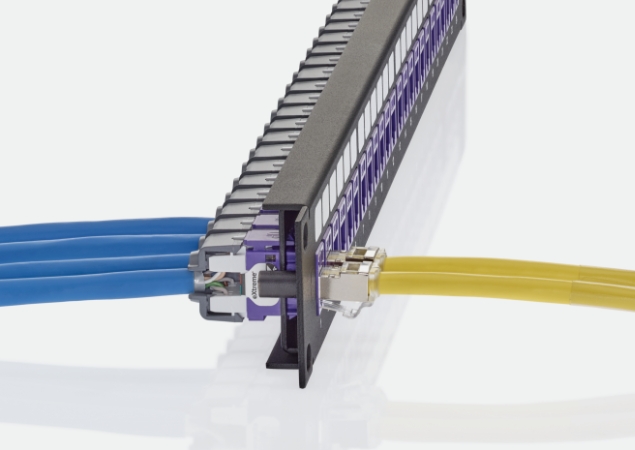

Finally, we provided a design that leveraged our EXTREME™ SST Cat 6A UTP MILLENNIUM™ Global System, Small-Diameter High-Flex Patch Cords, and consolidation points to reduce dispersion. This fit the capacity requirements of the final cable conduits and met the density needs requested by the customer.
- Ideal for enterprise systems, our EXTREME solution provides error-free performance up to 10 Gigabit Ethernet with full duplex transmission up to 500 MHz
- EXTREME is also backwards compatible with Gigabit Ethernet to provide seamless migration to 10GBASE-T, and supports all Cat 6A, Cat 6, and Cat 5e system requirements
- Our High-Flex Patch Cords have a compact plug and boot, provide small 0.185” (4.7 mm) outer diameter, and reduce patch cord density in a 24-port patch panel by 25% when compared to typical Cat 6A patch cords
Of equal importance to the client was our commitment to the delivery date of materials, resolved with advance ordering by our chosen distributor. System components arrived on time, and were easy to install – another perk of the global system our client chose to utilize.
The Impact
Post-implementation, the newly-renovated building had two fully functional networks, and a scalable infrastructure to facilitate fast and easy upgrades. The client appreciated the ingenuity and collaborative approach of the Leviton staff, noting that proposals were meticulously tailored to meet their present and future needs.
