Pop-Up Floor Box Receptacles

Power When You Need It, Concealed When You Don't

Popup floor box receptacles
The Pop-Up Floor Box Receptacle offers a modern, practical way to attractively conceal electrical wiring devices in homes and businesses, while still providing accessibility to power when needed. Featuring a sleek low profile and stylish metal cover that recesses neatly into the floor when not in use, it takes only the press of a button to make the receptacle available.
The Pop-Up Floor Box Receptacle may be used to satisfy the appropriate code requirements for residential and commercial applications; it also offers protection from ingress of water spray when closed and meets or exceeds scrub water test for safety.
placeholder

Residential & Commercial Applications

Homes and Multifamily Units with:

  • Floor to ceiling windows
  • Great rooms

Commercial Applications

  • Cafe/restaurants
  • Hotels
  • Shopping malls
  • Offices, meeting rooms
placeholder
placeholder

Flooring Types

  • Tile
  • Stone
  • Wood
  • Laminate
  • Carpet
  • Concrete
  • Vinyl

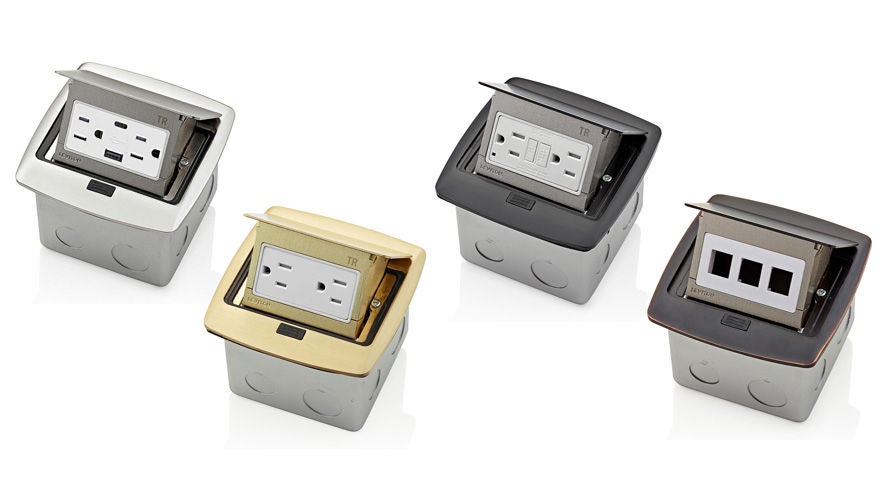

Pop-Up Floor Box Receptacles are available in the following configurations:

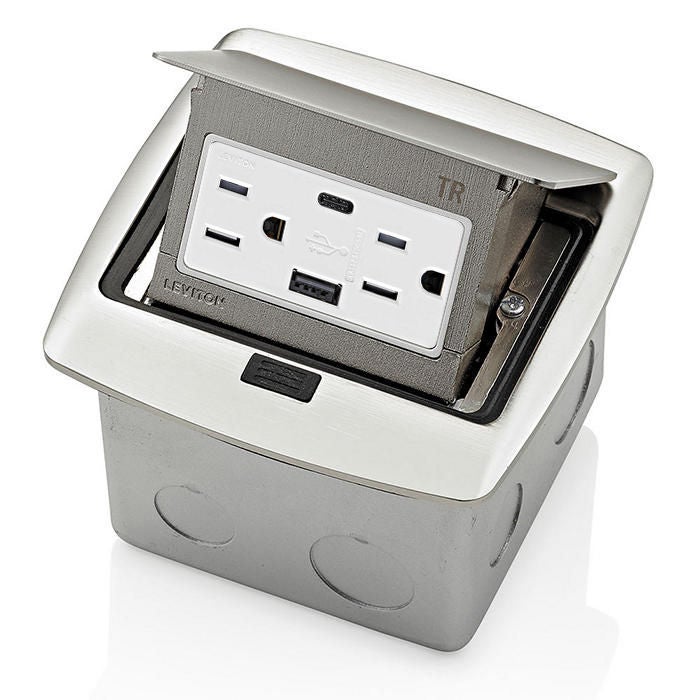

  • USB Charger/Tamper-Resistant Receptacle
  • Self-Test Tamper-Resistant GFCI Receptacle
  • Decora® Tamper-Resistant Receptacle
  • 3-Port QuickPort Insert (Leviton connectors sold separately)
  • Brushed Nickel, Black, Brass, and Bronze finishes
placeholder

Features

  • Contoured top plate for enhanced aesthetics
  • Side latch open/close mechanism prevents scratching of wiring device face

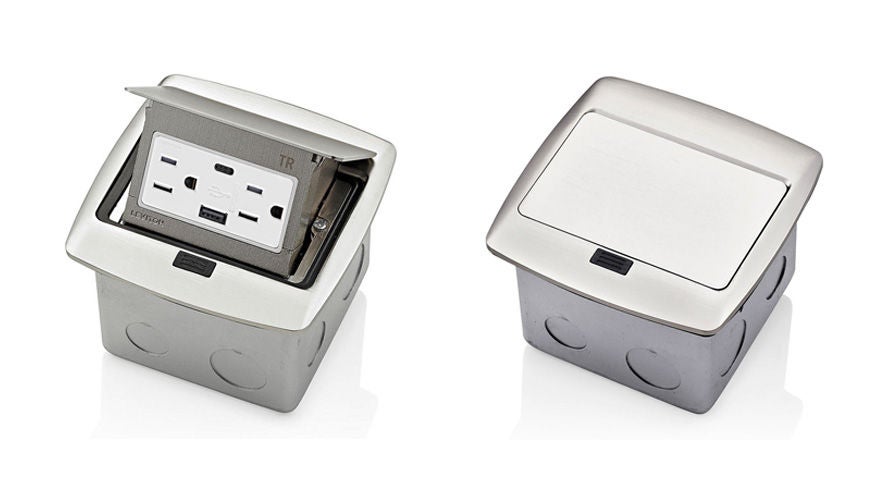

  • Low profile cover recesses when not in use, reducing above-floor height to only ¼ inch
  • Assembled with genuine Leviton wiring devices
  • Pre-wired terminal block for easy wiring access and installation
  • IP 44 Rated: protection from ingress of water spray from any direction when closed
  • Meets or exceeds UL 514A requirements including scrub water test
  • Tamper-resistant to comply with the latest NEC® requirements for tamper-resistant receptacles in residences and childcare facilities
  • Adjustable concrete rated electrical box included
