Why HF-Rated GFCI Protection Matters for Modern HVAC Systems

Leviton GFCI in Kitchen Wall

Today's air conditioners and heat pumps are smarter and more efficient than ever. At the same time, GFCI protection requirements have expanded for many outdoor HVAC installations, making compatibility between HVAC equipment and electrical protection devices more important than ever.

Many modern systems use inverter-driven compressors, variable-speed motors, and advanced electronics to improve comfort while reducing energy consumption. While these technologies offer important benefits, they have also introduced new compatibility considerations. That's one reason High-Frequency (HF) rated GFCI technology was developed.

GFCI Protection Is Becoming More Common in HVAC Applications

As GFCI Protection becomes more common in HVAC applications, installers and homeowners are increasingly focused on selecting solutions that work reliably with today's electronically controlled equipment.

For homeowners, this means greater attention to electrical safety around outdoor equipment. For contractors, it means selecting protection devices that are compatible with today's HVAC technologies.

Why Some Modern HVAC Systems Can Cause Nuisance Tripping

Many newer HVAC systems rely on inverter technology and variable-speed operation to improve efficiency and maintain more consistent indoor comfort. These systems use advanced electronics that can generate small amounts of high-frequency leakage current during normal operation. While these signals are typically harmless, they may sometimes create compatibility challenges with older generations of GFCI devices.

The results can be what's commonly referred to as a nuisance trip, where power is interrupted even though no dangerous ground fault is present. To help reduce these nuisance trips, Leviton developed HF-rated GFCI technology designed to improve compatibility with modern HVAC equipment while maintaining the personal protection expected from a GFCI device.

How Leviton's HF-Rated HVAC GFCI Solutions Help

HF-rated GFCI solutions are designed to improve compatibility with modern HVAC equipment while maintaining Class A personnel protection. For HVAC applications, this includes Leviton's HF-rated 2-pole GFCI breakers, which are designed to work with today's inverter-driven heating and cooling equipment.

Benefits include:

  • Reduced nuisance tripping caused by harmless high-frequency leakage currents
  • Improved compatibility with inverter-driven air conditioners and heat pumps
  • Continued personnel protection
  • Support for modern HVAC installations using advanced electronics

Leviton's HF-rated GFCI portfolio includes 2-pole GFCI breakers designed for HVAC applications. Because HF technology has been implemented across Leviton's GFCI product portfolio, contractors and homeowners can select solutions designed for today's electronically controlled equipment while maintaining flexibility for future system upgrades.

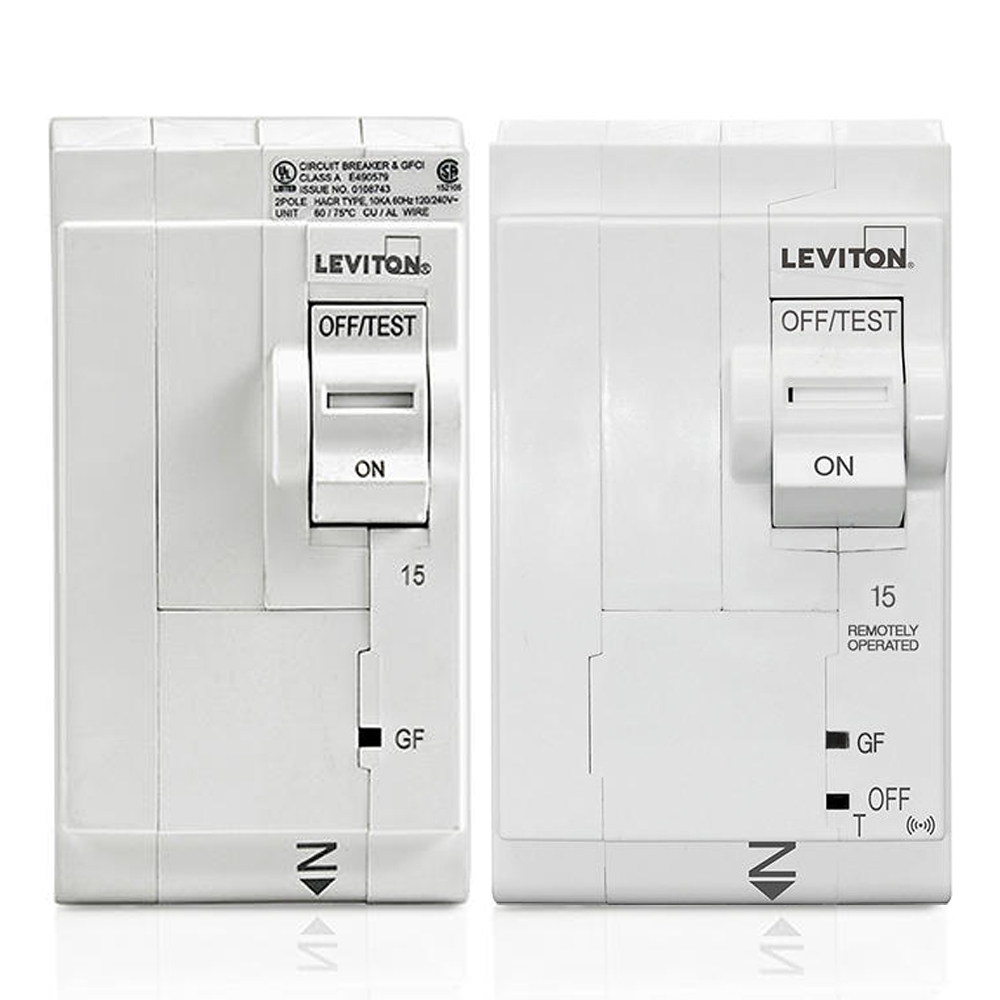

Leviton GFCI

Common Questions About HF-Rated GFCI Protection for HVAC Systems

Why does my air conditioner trip a GFCI?

Modern HVAC systems often use inverter-driven technology and advanced electronics. In some installations, harmless high-frequency leakage currents generated during normal operation can contribute to nuisance tripping.

What is an HF-rated GFCI breaker?

An HF-rated GFCI breaker is designed to improve compatibility with modern equipment that generates high-frequency leakage currents during normal operation while continuing to provide Class A personnel protection.

Will an HF-rated GFCI eliminate all nuisance tripping?

Proper installation, wiring conditions, equipment health, and application requirements all play a role in reducing nuisance tripping. Leviton's HF-rated technology is specifically designed to help reduce nuisance trips associated with modern electronic equipment.

What to Look for When Choosing an HVAC GFCI Solution

As inverter-driven HVAC systems become increasingly common, compatibility between HVAC equipment and GFCI protection will continue to be an important consideration. When selecting an HVAC GFCI solution, look for products designed to work with modern electronically controlled equipment while maintaining the personnel protection required for the application.

Leviton's HF-rated GFCI solutions, including HF-rated 2-pole breakers, are designed to help reduce nuisance tripping and improve compatibility with today's high-efficiency HVAC systems.

Explore HF-rated GFCI solutions built for today's high-efficiency HVAC systems.  Levitons HF GFCIs
