Back vs Side wiring

Back Wiring vs. Side Wiring

Did you know you can back wire or side wire a Leviton electrical device such as a wall outlet, light switch, motion sensor or GFCINote - Not all devices have both options available.

Warning: Before wiring any electrical devices, make sure the power is turned off at the circuit panel and test with a voltage tester.

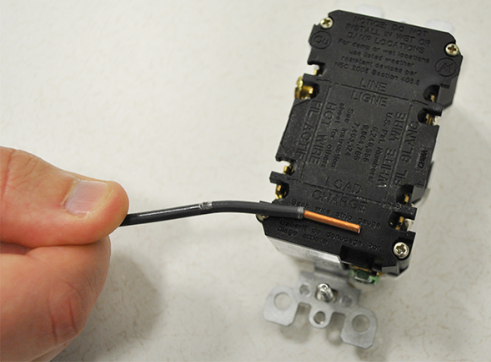

When stripping wires, use the gauge shown on the back of the device to measure the correct length. Enough wire needs to be stripped so there is no insulation under the screw head.

When stripping wires, use the gauge shown on the back of the device to measure the correct length.

Back Wiring

Back wiring a device is when the wires (Black, white, green, etc.) are slid under the terminal clamp to the appropriate screw.

Side Wiring

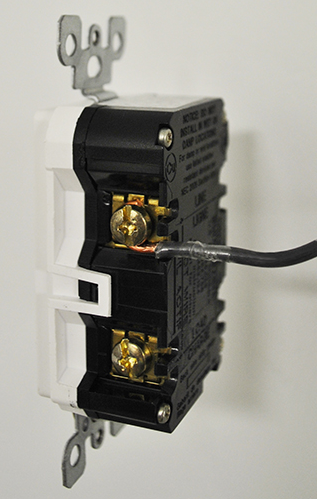

Side wiring a device is when the wires are attached using the side terminal screws. To do this, use a pair of pliers to bend the wire, creating a “fish hook", and place the hook around the appropriate screw. Tighten the screw so it holds the wire firmly in place.

Back Side Wire

Watch our video on How to Wire a Device Using the Side Wiring

Watch our video on How to Wire a Device Using the External Back Wire
