4-Inch Recessed Concrete Floor Box System Kit
FBI24

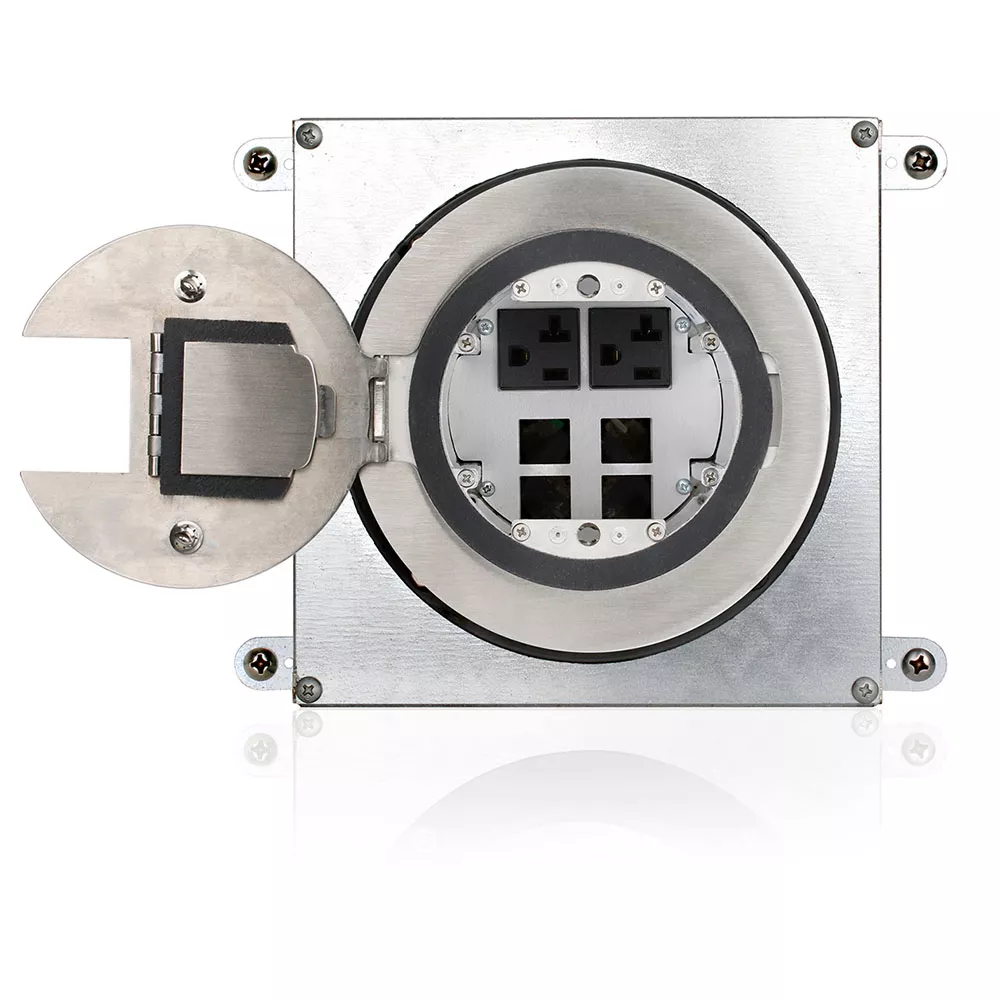

6" Tall Steel Concrete Floor Box System. 4" In-Slab, Recessed Box Kit Includes 2 Power Outlets (NEMA 5-20R), 4 Data Ports, and Hinged, Stainless Steel Cover
- Ease of Installation: Rotating flange adjusts to finished floor height
- Superior Performance: Flip lids fold inside, eliminating tripping hazards and providing a completely recessed, flushed finish
- Maximum Compatibility: Available with both power and data to meet any application's need
Product Information
Environmental Specifications
Operating Temperature : -40°C to 60°C
Mechanical Specifications
Conduit Feeds : Parallel
Conduit Selection : Accepts 1", 1.25", 1.5" metallic conduit
Cubic Inch Capacity : 128 in^3
Data Hub Size : 1.25" or 1.5"
Dimensions : 8" x 8" x 2" Floor Box
Minimum Depth of Pour : 7"
Power Hub Size : 1" or 1.25"
AC Horsepower Ratings
At Rated Voltage : 1/2 HP
Electrical Specifications
Amperage : 20 A
Current Limiting : Full Rated Current
Voltage : 125 VAC
Product Features
Device Type : Box System
Feature : Recessed outlets to hide plugs
Gasket : Pre-installed on Cover
Type : Concrete
Material Specifications
Cover Material : Stainless Steel
Warranty
Warranty : 2-Year Limited
